Collets for multi-spindle automatic lathes

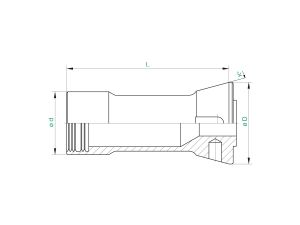

Pic. 1

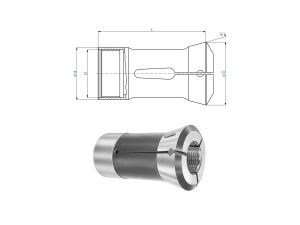

Pic. 2

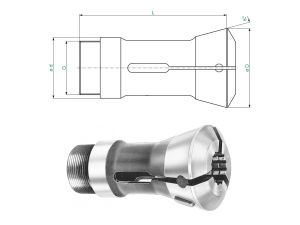

Pic. 3

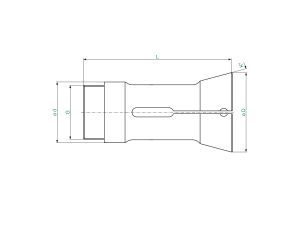

Pic. 4

for Gildemeister

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9013 E	1	26,8	34,0	83,5	15	M 24 x 1,0 L	13	11	9	AS 12
9023 E	4	30	39,0	77	15	Bajonett	20	17	11	GM 16 AC
9012 E	1	34	42,0	85	16	M 30 x 1,0 L	20	17	14	AS 16 - AS 20 - GM 20
9017 E	2	38	45,5	85	16	M 34,5 x 0,75 L	25	22	18	AS 20 erw. 25 - GM 20 erw.
9044 E	2	45	60,4	159	15	M 40 x 1,5 L	22	19	15	AS 22
9045 E	2	45	60,4	159	15	M 40 x 1,0 L	25	22	18	AS 25
9046 E	2	45	60,4	159	15	M 40 x 1,5 L	25	22	18	GS 25
9069 E	2	53	69,4	128	15	M 48 x 1,5 L	32	27	22	AS/AV/GM 32 - GM 35
9081 E	2	56	72,0	131	15	M 52 x 1,5 L	35	30	24	GS 35
9115 E	2	64	80,5	129	15	M 59 x 1,5 L	42	36	28	GM 42
9132 E	2	70	90,0	149	15	M 65 x 1,5 L	48	41	33	AS/AV/AA/AR 48
9151 E	2	75	97,4	165	15	M 68 x 1,5 L	50	43	35	GS 50
9151 E-1	2	75	93,4	155	15	M 68 x 1,5 L	50	43	35	GS 51
9178 E	2	90	115,0	170	15	M 85 x 1,5 L	67	58	47	AS 67
9209 E	2	109	138,0	189	15	M 102 x 1,5 L	82	70	57	AS/AV 82
9239 E	2	128	160,4	250	15	M 122 x 1,5 L	100	87	71	AS 100

for Index

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9007 E	1	32	41,5	79	15	M 28 x 1,0 L	19	16	13	MS 16
9033 E	1	40	55,2	102	15	M 35 x 1,5 Ro. L	22	19	15	KS 20 - KS 22
9039 E	3	46	60,5	112	15	M 40 x 1,5 L	25	22	18	KS/MS 25
9070 E	1	53	69,3	128	15	M 47 x 1,5 L	32	28	23	KS 32
9081 E	2	56	72,0	131	15	M 52 x 1,5 L	35	30	24	MS 35
9108 E	1	62	82,4	178	15	M 58 x 1,5 L	42	36	30	KS 42
9133 E	1	70	92,0	154,5	15,5	M 65 x 2,0 L	50	43	35	KS 50
9151 E	2	75	97,4	165	15	M 68 x 1,5 L	50	43	35	MS 50

for Pittler

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9038 E	3	44,3	56,0	136,5	15	1.9/16“ x 1/18“ L	25	22	18	PRC 25
9067 E	3	52,2	64,7	149	15	1.13/16“ x 1/18“ L	32	27	22	PRB/PRC 32
9078 E	3	57,0	69,72	149	15	2“ x 1/20“ L	36	31	25	PRC 36
9141 E	1	76,8	95,5	177	15	2.11/16“ x 1/16“ L	50	43	35	PRB/PRC 50
9206 E	1	106,0	127,7	220	15	3.13/16“ x 1/18“ L	72	62	51	PRC 72
9236 E	2	136,5	165,7	219	15	5.1/16“ x 1/18“ L	104	90	73	PRC 100
The highlighted item numbers correspond to VDI 3322.

for Schütte

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9015 E	1	25	36,1	68	15	M 22 x 1 L	13	11	9	SF 12 - SF 13
9006 E	3	30	40,5	80	15	M 26 x 1 L	16	14	11	SB 16
9007 E	1	32	41,5	79	15	M 28 x 1 L	16	14	11	SE 16 - SE 18
9016 E	1	32	41,5	79	15	M 30 x 1 L	20	17	14	SF/VD 20
9049 E	1	46	60,3	112	15	M 40 x 1,5 L	25	22	18	AF/SE/SD/VD 25 - SF 26
9070 E	1	53	69,3	128	15	M 47 x 1,5 L	32	28	23	AF/AV/SF/SD/VD 32
9083 E	1	56	72,5	130	15	M 52 x 1,5 L	36	31	25	S 36 PC
9112 E	1	62,9	78,3	147	15	M 56 x 1,5 L	40	35	28	SD/SF 40 - SF 42
9139 E	1	75	97,8	175	15	M 68 x 1,5 L	50	43	35	SD/SF 50 - SF 51 - S 51 PC
9179 E	1	90	115,3	200	15	M 82 x 1,5 L	63	54	44	SD/SF/VD 63
9187 E	2	89,9	115,3	172	15	M 85 x 1,5 L	69	59	48	SF 67
9210 E	1	109	138,3	230	15	M 100 x 1,5 L	63	54	44	SD 80/SF 81

for Tornos

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9001 E	2	25	35	73	15°30´	M 22 x 1	14	12	10	AS/BS 14
9021 E	1	25	35	92	15°30´	M 25 x 1	16	14	11	AS/SAS 16
9018 E	1	35	45	105	15°30´	M 33 x 1	23	20	16	BS 20/22
9020 E	2	36	45	105	15°30´	M 33 x 1,25	21	18	14	BS 20 B

for Tornos Bechler

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9012 E	1	34	4,0	85	16	M 30 x 1 L	20	17	14	Multi Deco 20-6, 20-8
9049 E-1	1	46	60,3	112	15	M 40 x 1,5 L	25	22	18	Multi Deco 26-6

for Wickmann

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9014 E	4	29,4	38,1	90,5	15	1.03“ x 1/24“ L	16	13	11	5/8“
9034 E	2	41,0	54,5	130,2	15	1.484“ x 1/24“ L	25	22	17	1“
9072 E	2	55,0	66,8	113,5	16	2.001“ x 1/22“	32	27	22	1.3/8“
9111 E	2	64,21	78,7	127,0	15	2.376“ x 1/16“	32	27	22	1.3/4“

for ZPS

art. no.	pic.	d	D	L	K°	thread G	max. diameter			type
art. no.
9047 E	2	42,0	50,0	120	15	M 38 x 1,5	25	22	17	SAY - 25
9049 E	1	46,0	60,3	112	15	M 40 x 1,5 L	25	22	17	SAY - 25
9070 E	1	53,0	69,3	128	15	M 47 x 1,5 L	32	28	23	SAY - 32
9112 E	1	62,90	78,3	147	15	M 56 x 1,5 L	40	35	28	SAY - 42
Highlighted art. no. according to VDI 3322

Use:

for workpiece clamping
for bar or chuck work

Bore patterns:

up to 6 mm: smooth bore
from 6 mm: round grooves
from 9 mm: serrated for round bores

Hardness:
The collets are made from special spring steel. Where possible, by partial tempering, the hardness of the taper and clamping bore is approx. HRc 60. The shank and sprung area are hardened to spring temper.

Taper grinding:
The clamping taper is lightly ground at the slot edges to ease removal of the collets from the mounting thus making possible low undersized clamping.

Taper angle of the clamping sleeve:
The taper of the clamping sleeve should be 15‘ (one-sided) flatter than the taper angles given in the tables to ease removal of the collet from the mounting taper thus making possible low undersized clamping.
