Collets for Rismatic rotary transfer machines
Description:
We provide collets for rotary transfer machines such as Hydromat and Rismatic in the customary Nann quality, with ultra-short delivery times. These collets can usually be reworked from collets in stock – contact us for details.
Application:
- for workpiece clamping
- no axial movement while chuck is clamping
Bore pattern:
- smooth
Hardness:
The collets are made from special spring steel. Where possible, by partial tempering, the hardness of the taper and the clamping bore is HRc 58 - 60. The shank guide and the sprung area have been tempered for spring hardness.
Special features:
- the complete set of collets is adjusted in its length
- all collets with high running concentricity
- profiled collets with cross keyways
- position of shank keyway in relation to profiled bore
- square, hex. and other profiled bores are eroded resulting in higher running concentricity
Please don’t hesitate to contact us. We will be glad to provide tailormade clamping devices for your requirements.

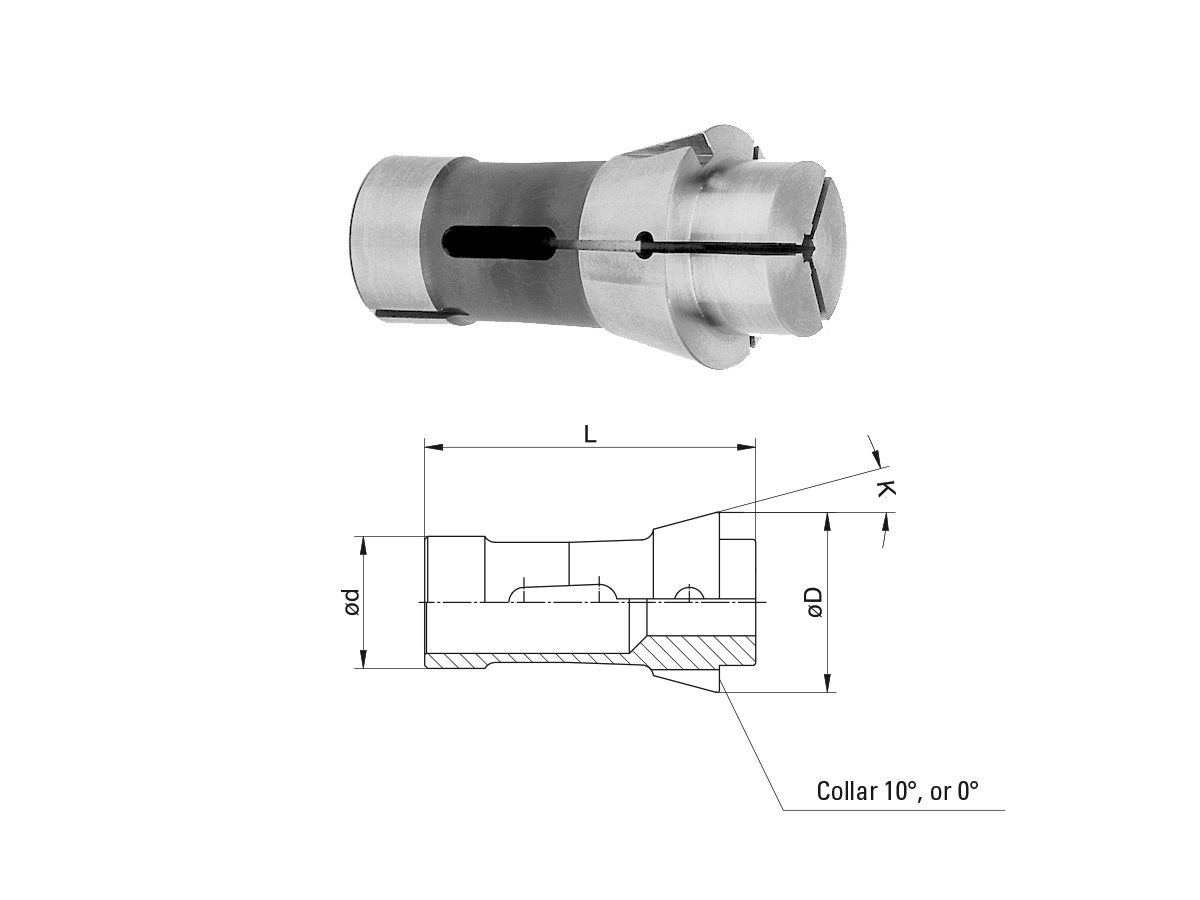

Art.-no. | d | D | L | K° | thread | max. bore |
Ris-140 E | 22 | 30 | 55 | 15 | 16 | 85 |
Ris-162 E | 35 | 43 | 70 | 15 | 25 | 61,5 |
