Collets with end stop

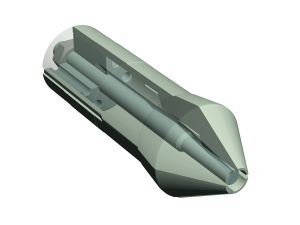

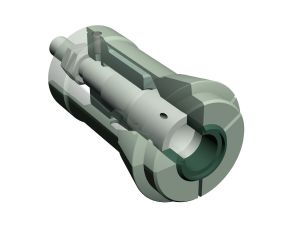

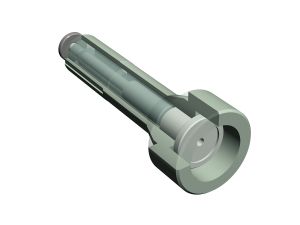

Deadlength and draw-back collets with integrated end stops are needed very often. Depending on the application, a standard end stop from stock can be used, or a special end stop is required. To successfully integrate an end stop like this into the collet, the free bore is usually ground. The end stop, regardless of whether it is of fixed length or adjustable, is then fitted into the ground free bore and pinned. This type of end stop can, depending on the application, also be given a through bore for pressurised air to pass through. This can prevent dirt from penetrating inside the collet. In the same way, a sprung ejector can also be integrated into a collet.

Don’t hesitate to contact us. We will be glad to provide tailor-made clamping devices for your requirements.
