Guide bushes for lathes



for Bechler

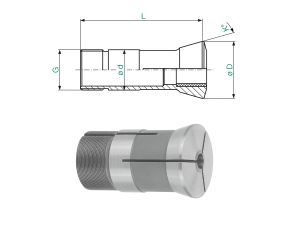

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3077 E 1.001 9 12,5 44 16 M 8 x 0,75 4,5 3 2,5 A4 - A7
3078 E 265.001 9 13 52 30 M 9 x 0,7 4,5 3 2,5 A7
3147 E 53.001 12 15,5 50 16 M 10 x 0,75 7 6 4,5 A7 - A10
3149 E 261.001 12 16 52 30 M 12 x 1,0 7 6 4,5 A7 - A10
3383 E 120.001 20 24 55 30 M 20 x 1,0 13 10,5 7,5 A10
3454 E 13.001 22 29 65 16 M 19 x 1,0 16 11 8,0 A7 - A10
3610 E 18.001 28 38 78 60 M 25 x 1,0 21 17 13,0 A7 - A10
3817 E 61.001 40 48 71 30 M 40 x 1,0 26 23 15,0 C26
3887 E 115.001 48 56 81 30 M 48 x 1,25 35 30 20,0 C26 - B16 - B20

for Citizen

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3260 E 8.001 16 20,5 59 16 M 14 x 1 10 8,5 6,5 D10 - F10 - L10
3320 E 166.001 18 22 61 30 M 16 x 1 13 11 9 B12
3507 E 61.002 24 29,5 61 30 M 24 x 1 17 14,5 11 F16 - L16
3602 E 22.001 28 34 82 16 M 25 x 1 21 17 13 L20 - M20
3708 E 282.001 32 40 66 30 M 32 x 1 22 E20 - F20
3733 E 451.001 34 41 84,5 10 M 34 x 1 27 23 15 F25 - E25 - L25
3827 E 28.001 42 49 82 16 M 40 x 1 32 28 E32 - G32

for Gildemeister

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3320 E 166.001 18 22 61 30 M 16 x 1 13 11 9 GLD12
3455 E 39.001 22 29 68 16 M 22 x 1 16,5 14 10,5 GLD16 (5-axis)
3610 E 18.001 28 38 81 30 M 25 x 1 21 17 13 GLD16 - GLD20
3733 E 451.001 34 41 87,5 10 M 34 x 1 27 23 15 GLD25 (4-axis) –
GLD25 (5-axis)

for Maier

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3602 E 22.001 28 34 82 16 M 25 x 1 21 17 13 ML18C - ML18D
3733 E 451.001 34 41 87,5 10 M 34 x 1 27 23 15 ML26C - ML26D
3827 E 28.001 42 49 82 16 M 40 x 1 32 26 ML32C - ML32D

for Tornos

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3077 E 1.001 9 12,5 44 16 M 8 x 0,75 4,5 3 2,5 M4 - T4 - TV
3134 E 3.001 11 14,5 53 16 M 10 x 0,75 6 5 4 M7
3133 E 5.001 11 14,5 53 16 M 10 x 0,75 7 6 4,5 M7
3260 E 8.001 16 20,5 59 16 M 14 x 1,0 10 8,5 6,5 R10 - M10 - R125 - MS7
3320 E 166.001 18 21,8 60 30 M 16 x 1,0 12 11 9 R10 - M10 - R125 - MS7
3319 E 171.001 18 21,8 60 30 M 18 x 1,0 13 11 9 R10 - M10 - R125 - MS7
3545 E 13.001 22 29 65 16 M 19 x 1,0 15 11 9 M15 - R16 - RR20
3455 E 39.001 22 29 68 16 M 22 x 1,0 17 14 10 M15 - R16 - RR20
3604 E 10.001 28 33 53 20 M 28 x 1,0 20 17 13 R10 - R125
3602 E 22.001 28 34 82 16 M 25 x 1,0 20 17 13 R20
3610 E 18.001 28 38 78 60 M 25 x 1,0 21 17 13 M20 - M25/28
3765 E 32.001 38 46 57 20 M 38 x 1,25 30 M15 - R16 - RR20
3827 E 28.001 42 49 82 16 M 40 x 1,0 32 28 18 MR32
3835 E 27.001 44 53 87 20 M 40 x 1,0 32 28 18 MR32
3890 E 19.001 48 58 65 20 M 48 x 1,25 32 28 18 M20 - M25/28
3894 E 36.001 50 60 95 15 M 50 x 1,0 30 M25

Tornos Bechler

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3134 E 3.001 11 14,5 53,0 16 M 10 x 0,75 6 5 4 DECO 2000-7
3260 E 8.001 16 20,5 59,0 16 M 14 x 1 10 8,5 6,5 DECO 2000-10
3507 E 61.002 24 29,5 61,0 30 M 24 x 1 17 14,5 11 DECO 2000-13
3610 E 18.001 28 38,0 78,0 60 M 25 x 1 21 17 13 DECO 2000-20
3733 E 451.001 34 41,0 87,5 10 M 34 x 1 27 23 15 DECO 2000-26
3827 E 28.001 42 49,0 82,0 16 M 40 x 1 32 28 18 DECO 2000-32
3260 E 8.001 16 19,5 59,0 16 M 14 x 1 10 8,5 6,5 ENC74/75
3322 E 40.031 18 21,5 100,2 20 M 18 x 1 13 11 9 ENC74/75
3507 E 61.002 24 29,5 61,0 30 M 24 x 1 17 14,5 11 ENC162/164
3610 E 18.001 28 38,0 78,0 60 M 25 x 1 21 17 13 ENC163/167
3735 E 40.032 34 46,0 150,0 20 M 32 x 1,5 25 21 16 ENC262/264
3322 E 40.031 18 21,5 100,2 20 M 18 x 1 12,7 11 9 TOP 100
3735 E 40.032 34 46,0 150,0 20 M 32 x 1,5 25 21 16 TOP 200

for Traub

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3320 E 166.001 18 21,8 60,0 30 M 16 x 1 13 11 9 TNL12/7
3437 E 21 24 62,5 12 M 18 x 1 14 TNL12/7
3455 E 39.001 22 29 68,0 16 M 22 x 1 17 14 10 TNL16
3585 E 492.001 27 30 57,5 12 M 24 x 1 16 14 11 TNL12/7
3586 E 493.001 27 30 67,5 12 M 24 x 1 16 14 11 TNL12/7
3602 E 22.001 28 34 82,0 16 M 25 x 1 20 17 13 TNL16 - 20
3733 E 451.001 34 41 84,5 10 M 34 x 1 27 23 15 TNL26

for Star

art. no. d D L K° thread G max. diameter type
Kreis Sechseck Quadrat
3134 E 3.001 11 14,5 53 16 M 10 x 0,75 7 5 4 SW7 - 7
3260 E 8.001 16 20,5 59 16 M 14 x 1 10 8,5 6,5 SW7 - 10 - JNC10
3438 E 450.001 21 24 54,5 12 M 18 x 1 15 12 9 VNC12 - SNC15
3455 E 39.001 22 29 68 16 M 22 x 1 18 14 10 RNC16 - SR16 - VNC16 - SA16 -
KJR16 - KNC16 - SI12
3602 E 22.001 28 34 82 16 M 25 x 1 21 17 13 BR20 - KNC20 - SR20R -
SV20 - VNL20 - ECAS20
3733 E 451.001 34 41 84,5 10 M 34 x 1 27 23 15 SNC25
3827 E 28.001 42 49 82 16 M 40 x 1 32 28 18 JNC25 - JNC32 - KNC32 -
SR32 - VNC32

Standard guide bushes:
Drawback guide bushes are used for normal use on use on Swiss-type lathes. These types of guide bushes are set to the tolerance of the material to be worked using an adjustable nut. The quality of the carbide metal and the shape of the bore are chosen to achieve optimum results for most materials.

  • clamping bore with carbide inserts
  • very long lifetime
  • high running concentricity
  • standard types ex stock
  • special profile bores within a few days
  • egrinding of bushes within one day

Special guide bushes are available for special cases where high radial forces are involved while working or when materials are difficult to machine:

  • guide bushes with spiral slots
  • fixed guide bushes
  • broached guide bushes

Carbide guide bushes for most common Swiss-type machines available: Bechler, Citizen, Gauthier, Gildemeister, Manurhin, Petermann, Star, Strohm, Tornos, Traub etc
