Segmented clamping mandrels
type KSVZ
| art. no. | L | F | Z | max. clamping diameter | max. operating power kN |
| KSVZ - 00 | 126 | 75,0 | 28,5 | 29 | 7 |
| KSVZ - 01 | 131 | 75,0 | 33,5 | 40 | 10 |
| KSVZ - 02 | 159 | 82,5 | 54,0 | 56 | 20 |
| KSVZ - 03 | 169 | 84,5 | 62,0 | 83 | 25 |
| KSVZ - 04 | 182,5 | 86,0 | 74,0 | 107 | 30 |
segmented clamping sleeves type SVZ
| art. no. | L | expansion | clamping diameter |
| SVZ - 00 | 23 | 1,2 | 19,7 - 27,7 increment of 1,0 |
| SVZ - 01 | 27 | 1,2 | 25,7 - 38,7 increment of 1,0 |
| SVZ - 02 | 44 | 1,2 | 35,7 - 54,7 increment of 1,0 |
| SVZ - 03 | 50 | 1,2 | 50,7 - 81,7 increment of 1,0 |
| SVZ - 04 | 60 | 1,2 | 72,7 - 105,7 increment of 1,0 |
Segmented clamping mandrels with hardened steel segments are especially suited for clamping workpieces having an inner geometry accessible from outside in the form of boreholes or a prismatic take-up. Main applications are turning, grinding, milling, toolcutting, balancing, centering, drilling, etc.
- hardened low-wear steel segments
- ideal workpiece stability thanks to the axis draw effect
- high concentricity and repeat accuracy
- high clamping force and compact design
- prepared for part-in-place check
Segmented clamping mandrels, fixed sleeve
type KSVD
| art. no. | Y min | Z | max. clamping diameter | max. operating power kN |
| KSVD - 00 | 80 | 96,8 | 16 | 7,5 |
| KSVD - 01 | 80 | 98,8 | 25 | 10 |
| KSVD - 02 | 103 | 127,1 | 35 | 20 |
| KSVD - 03 | 103 | 131,1 | 46 | 25 |
| KSVD - 04 | 108 | 150,1 | 66 | 30 |
| KSVD - 05 | 105 | 151,1 | 86 | 35 |
| KSVD - 06 | 109 | 166,1 | 106 | 40 |
| KSVD - 07 | 109 | 176,1 | 131 | 50 |

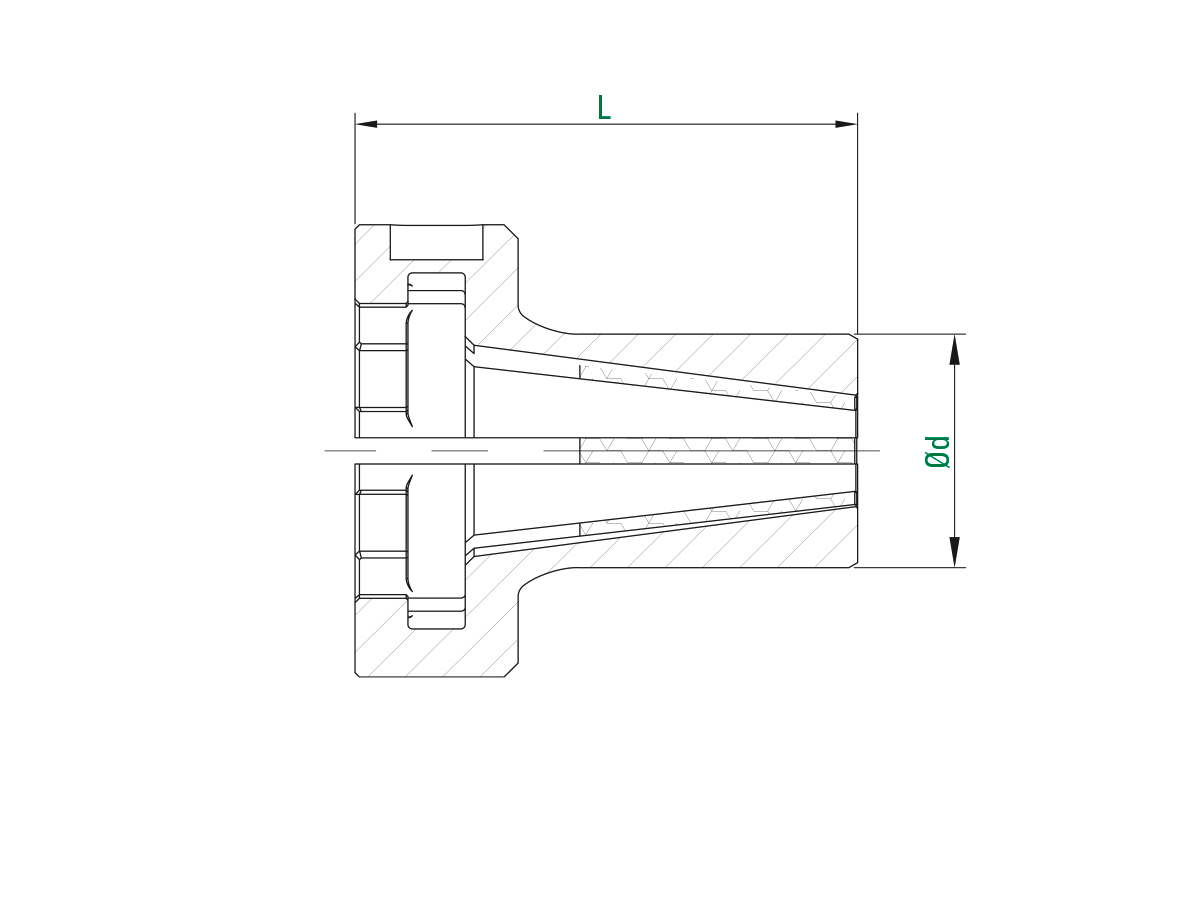

segmented clamping sleeves type SVD
| art. no. | L | expansion | clamping diameter |
| SVD - 00 | 38 | 0,6 | 9,7 - 15,7 increment of 0,5 |
| SVD - 01 | 40 | 0,6 | 13,7 - 24,7 increment of 0,5 |
| SVD - 02 | 52,5 | 0,6 | 18,7 - 34,7 increment of 0,5 |
| SVD - 03 | 57 | 1,2 | 26,7 - 44,7 increment of 1,0 |
| SVD - 04 | 76 | 1,2 | 36,7 - 64,7 increment of 1,0 |
| SVD - 05 | 82 | 1,2 | 53,7 - 84,7 increment of 1,0 |
| SVD - 06 | 95 | 1,2 | 71,7 - 104,7 increment of 1,0 |
| SVD - 07 | 105 | 1,2 | 94,7 - 129,7 increment of 1,0 |
Segmented clamping mandrels with hardened steel segments are especially suited for clamping workpieces having an inner geometry accessible from outside in the form of boreholes or a prismatic take-up. Main applications are turning, grinding, milling, centering, drilling, measuring, etc.
- hardened low-wear steel segments
- high concentricity and repeat accuracy
- high clamping force
- compact design
- no axial movement of clamping sleeve
