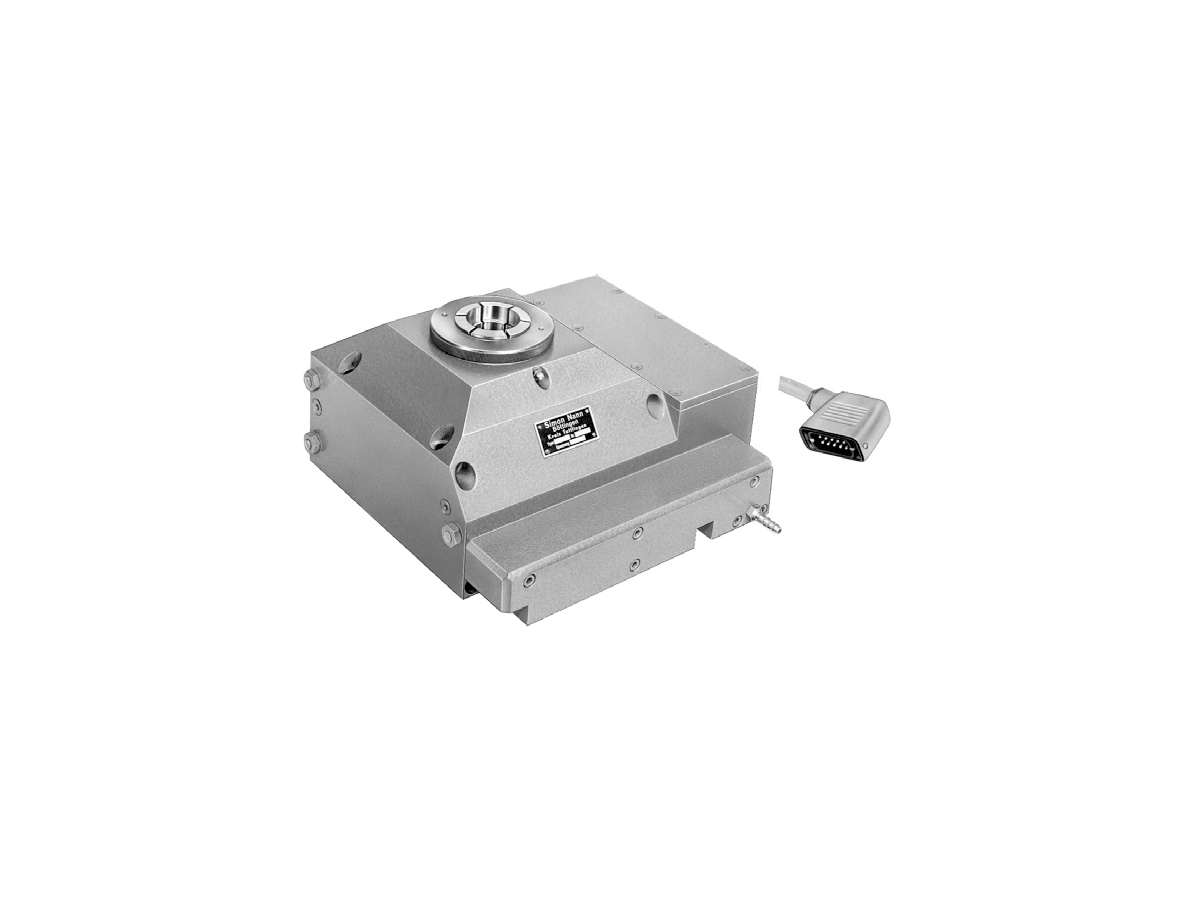

Type PT pneumatic clamping and indexing units
Type PT pneumatic clamping and indexing units
| art. no. | dimensions | surface area | center height H |
max. through bore |
max. clamp.-ø |
collet type | indexing angle | piston surface cm² |
weight kg |
|||
| e x d | height F | a x b | a x c | max. | min. | |||||||
| PT 11 | 227 x 245 | 150 | 160 x 175 | 160 x 100 | 80 | 22 ø | 25 ø | 367 E | 120° | 26° | 65 | 26 |
| PT 17 | 277 x 310 | 165 | 210 x 225 | 210 x 105 | 105 | 38 ø | 42 ø | 390 E | 120° | 18° | 148 | 44 |
| PT 22 | 297 x 335 | 190 | 230 x 245 | 230 x 128 | 116 | 62 ø | 62 ø | 3955 E | 120° | 18° | 170 | 60 |
- extremely short indexing time
- drawback collets are especially suited for applications using short workpieces
- indexing plate can easily be changed
- allows close length tolerances to be reached regardless of variations in the diameter of the workpieces being used
- regular or irregular indexing
type PT
- integrated valves
- integrated micro-switches
- valve box available, mounted either on right or left side
- suitable for SPC control systems
type PT/W
| art. no. | dimensions | surface area | center height H |
max. through bore |
max. clamp.-ø |
collet type | indexing angle | piston surface cm² |
weight kg |
||
| height F | a x b | a x c | max. | min. | |||||||
| PT 11/ W | 150 | 160 x 175 | 160 x 100 | 80 | 22 ø | 25 ø | 367 E | 120° | 26° | 65 | 26 |
| PT 17/ W | 165 | 210 x 225 | 210 x 105 | 105 | 38 ø | 42 ø | 390 E | 120° | 18° | 148 | 44 |
| PT 22/ W | 190 | 230 x 245 | 230 x 128 | 116 | 62 ø | 62 ø | 3955 E | 120° | 18° | 170 | 60 |
type PT/W
- without solenoid valves
- without micro-switches
