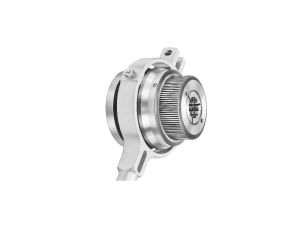

Type SSF lever-operated collet chucks

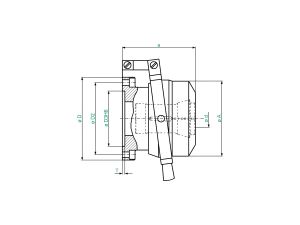

with cylindrical flange
| art. no. | clamping range | D | a | A | D3 | fixing screws | D2 | steel collets | rubber collets | |
| SSF 16 Z | 1 - 16 | 69 | 73 | 66 | 42 | 4 x M 5 | 57 | 140 E | series 12 | |
| SSF 20 Z | 2 -24 | 88 | 93 | 85 | 54 | 6 x M 6 | 74 | 148 E | series 18 | |
| SSF 30 Z | 2 - 30 | 105 | 106 | 104 | 72 | 6 x M 6 | 90 | 163 E | series 24 | |
| SSF 40 Z | 3 - 42 | 122 | 110 | 129 | 88 | 8 x M 6 | 107 | 173 E | series 36 | |
| SSF 60 Z | 4 - 60 | 150 | 128 | 154 | 115 | 8 x M 8 | 131 | 185 E | series 52 | |
| SSF 80 Z | 20 - 80 | 178 | 150 | 180 | 130 | 8 x M 8 | 158 | 193 E | - | |
| Collet chucks are supplied without connecting parts. | ||||||||||

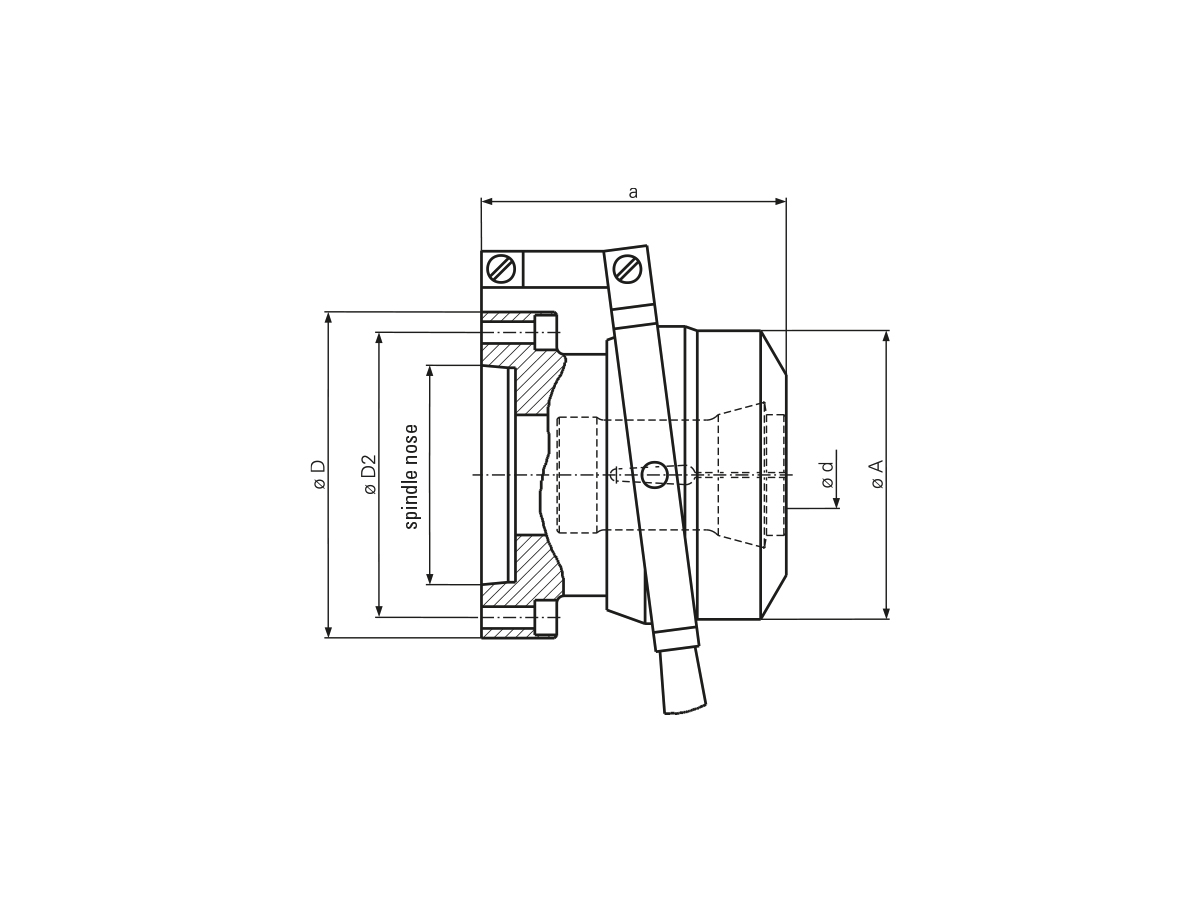

with flange for spindle-noses
| art. no. | clamping range | D | a | A | D3 | fixing screws | D2 | steel collets | rubber collets | |
| SSF 30/5 | 2 - 30 | 135 | 120 | 104 | 5 | 4 x M 10 | 104,8 | 163 E | series 24 | |
| SSF 40/5 | 3 - 42 | 135 | 122 | 129 | 5 | 4 x M 10 | 104,8 | 173 E | series 36 | |
| SSF 40/C 5 | 3 - 42 | 135 | 123 | 129 | C 5 | 4 x M 12 x 1,5 | 104,8 | 173 E | series 36 | |
| SSF 40/6 | 3 - 42 | 170 | 125 | 129 | 6 | 4 x M 12 | 133,4 | 173 E | series 36 | |
| SSF 40/C 6 | 3 - 42 | 170 | 127 | 129 | C 6 | 6 x M 16 x 1,5 | 133,4 | 173 E | series 36 | |
| SSF 60/6 | 4 - 60 | 170 | 140 | 154 | 6 | 4 x M 12 | 133,4 | 185 E | series 52 | |
| SSF 60/C 6 | 4 - 60 | 170 | 146 | 154 | C 6 | 6 x M 16 x 1,5 | 133,4 | 185 E | series 52 | |
| SSF 60/8 | 4 - 60 | 220 | 143 | 154 | 8 | 4 x M 16 | 171,4 | 185 E | series 52 | |
| Collet chucks are supplied without connecting parts. | ||||||||||
- easily mounted collet chucks for steel and rubber collets
- workpieces can be changed manually during operation
- economical application even for small series
- an all-around multi-purpose chuck of machine tools
- simple balanced design with powertransmission by the means of balls
- excellent clamping power due to optimal power transmission ratio
- workpieces within a tolerance range of IT 9 can be clamped safely
- high precision during constant operation due to hardened parts
- small dimensions and large clamping capacity
- workpieces remain axially stationary during clamping
