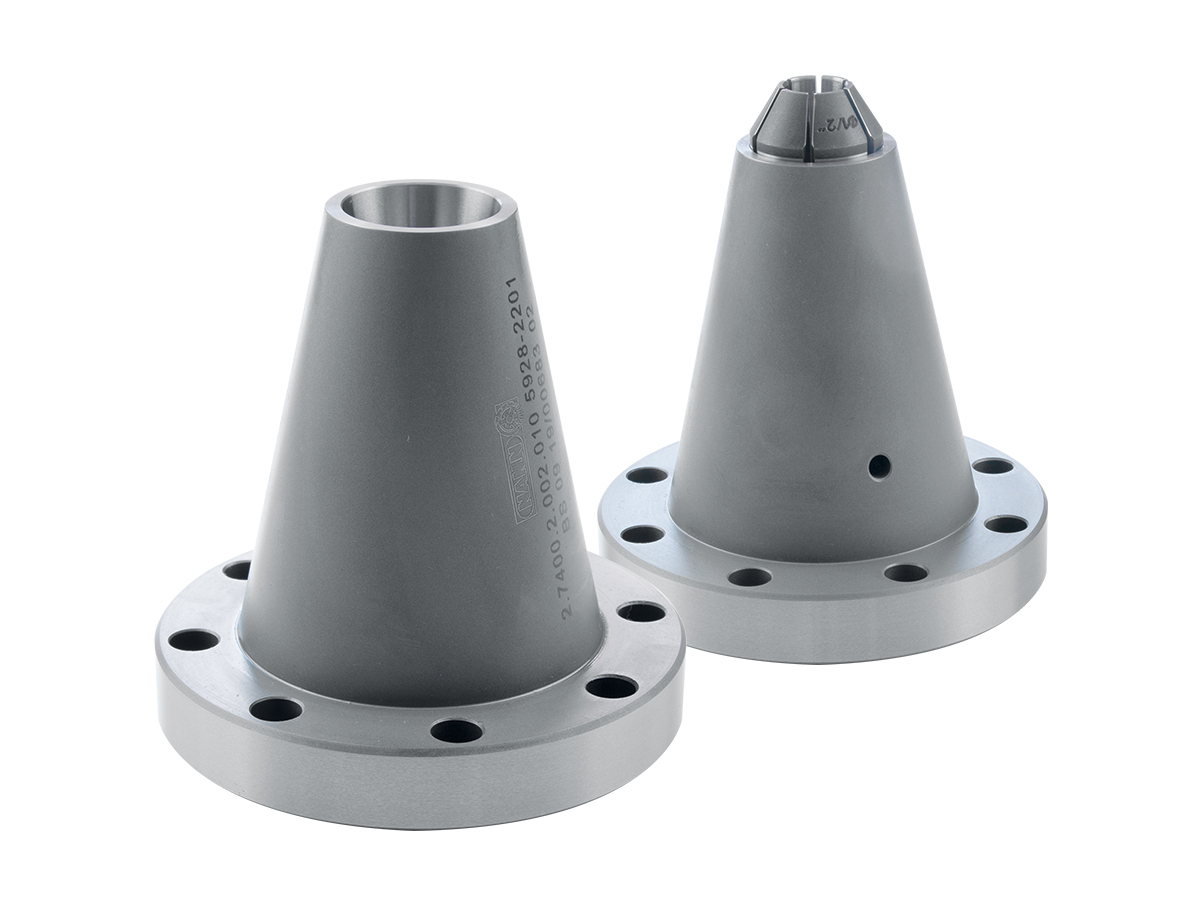

Chucks for draw-back collets, high precision

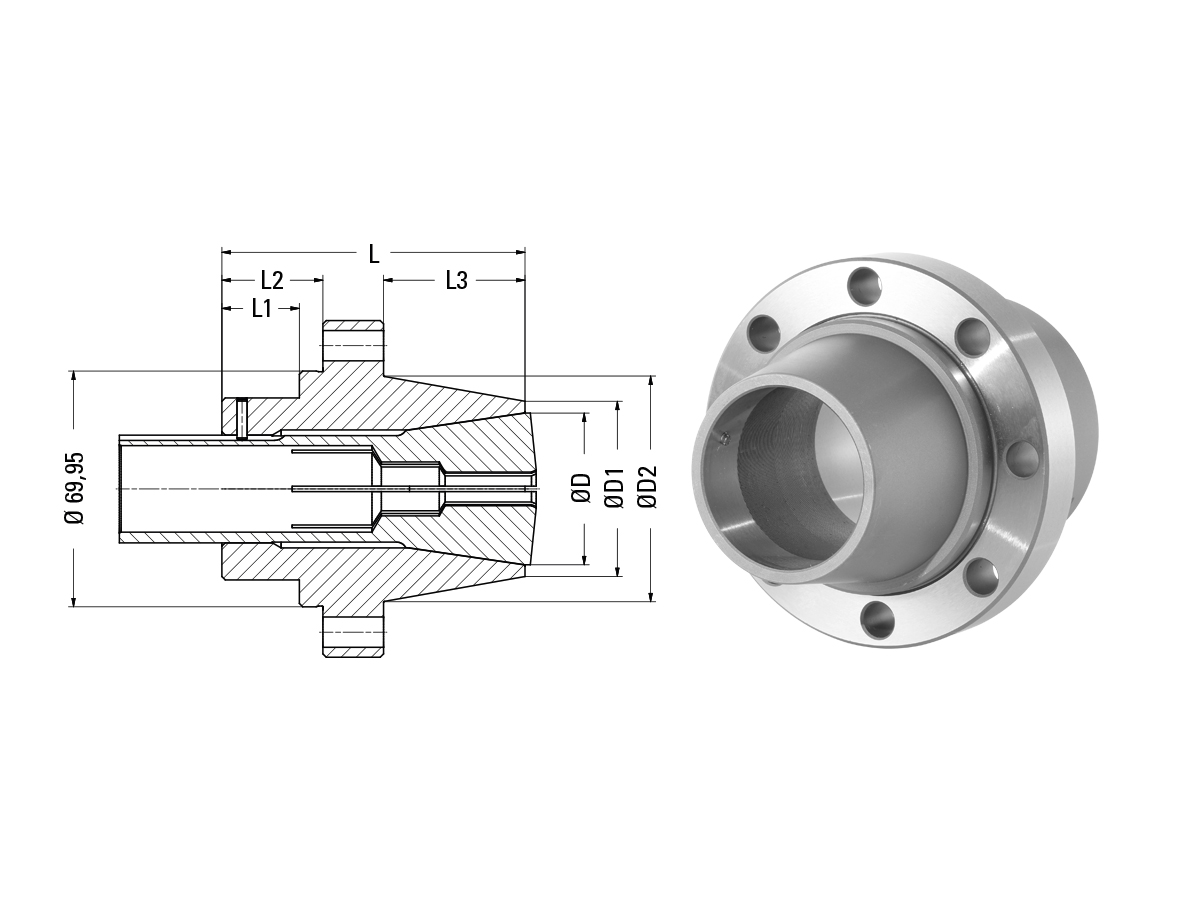

Pic. 5
chucks
| art. no. |
pic. |
D |
D1 |
L |
L1 |
L2 |
L3 |
collets |
| 2.7400.2.001.000 |
5 |
22,0 |
70,0 |
75,0 |
|
7,0 |
52,0 |
3148 E |
| 2.7400.2.001.010 |
5 |
22,0 |
69,0 |
105,0 |
|
7,0 |
82,0 |
3148 E |
| 2.7400.2.002.000 |
5 |
34,0 |
70,0 |
75,0 |
|
7,0 |
52,0 |
3409 E |
| 2.7400.2.002.010 |
5 |
34,0 |
69,0 |
105,0 |
|
7,0 |
82,0 |
3409 E |
| 2.7400.2.003.000 |
5 |
52,0 |
66,8 |
90,0 |
23,0 |
30,0 |
42,0 |
3718 E |
| 2.7400.2.003.010 |
5 |
52,0 |
67,5 |
97,0 |
|
7,0 |
74,0 |
3718 E |
| 2.7400.2.004.000 |
5 |
70,0 |
70,0 |
105,0 |
38,0 |
45,0 |
44,0 |
3851 E |
- for draw-back collets, high precision
- simple design
- case hardened
- very high accuracy
- cylindrical fi xture
- for spindles with rotating hydraulic or pneumatic cylinders
