Clamping heads for multi-spindles

for INDEX

art. no.	id.	pic.	d	D	L	thread	max. diameter			type

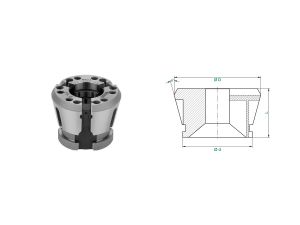

9539 E	Clamping head	1	37,5	60,5	38		26	22	18	MS 25

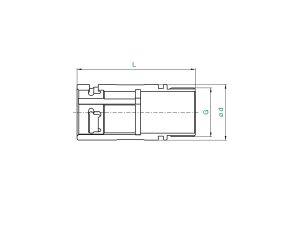

	Basic body	2	46		93,5	M 40 L	26	22	18
9542 E	Clamping head	1	47,2	61	47		32	27	22	MS 32
	Basic body	2	46			M 42 x 1,0 L	32	27	22
782 E	Clamping head	1	54	79,5	47		42	36	30	MS 36 - MS 42
	Basic body	2	56		111,7	M 52 x 1,5 L	42	36	30	Basic - MS 24 C

for Tornos Bechler

art. no.	id.	pic.	d	D	L	thread	max. diameter			type
9542 E	Clamping head	1	47,2	61	47		32	27	22	Multi Deco 26 - 6
	Basic body	2	46,0		81,5	M 42 x 1,0 L	32	27	22

for Schütte

art. no.	id.	pic.	d	D	L	thread	max. diameter			type
9507 E	Clamping head	1	29,6	42,5	28		18	15	13	SG 18 - AG 20
	Basic body	2	32		67	M 28 x 1 L	18	15	13
9539 E	Clamping head	1	47,5	60,5	38		26	22	18	SE 25 - SE/AF/SF 26 - SF 26S
	Basic body	2	46		93,5	M 40 L	26	22	18
9550 E	Clamping head	1	54	78,3	47		42	36	30	AD/SF 40 - AD/SF 42
	Basic body	2	63		119	M 56 x 1,5 L	42	36	30
9564 E	Clamping head	1	66	98,2	65		50	41	34	SD 50 - AS/SF 51 - SF 51S
	Basic body	2	75		187	M 68 x 1,5 L	50	41	34

for Gildemeister

art. no.	id.	pic.	d	D	L	thread	max. diameter			type
9506 E	Clamping head	1	29	42,3	29		20	17	14	AS/GM/GS 20 - AS 16
	Basic body	2	34		85,5	M 30 x 1 L	20	17	14
9508 E	Clamping head	1	23	45,5	29		25	21	17	AS 20 - 25
	Basic body	2	38		90	M 34,5 x 0,75 L	25	21	17
9545 E	Clamping head	1	44,5	69,4	43		32	28	22	AS/GM/GS 32
	Basic body	2	53		128	M 68 x 1,5 L	32	28	22

for Mori Say

art. no.	id.	pic.	d	D	L	thread	max. diameter			type
9550 E	Clamping head	1	54	78,3	47		42	36	30	6/32 M - 6/42 CNC
	Basic body	2	63		119	M 56 x 1,5 L	42	36	30
