Deadlength collets

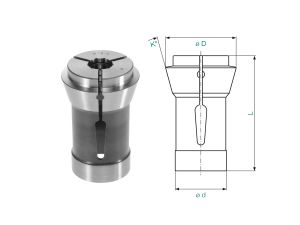

Pic. 1

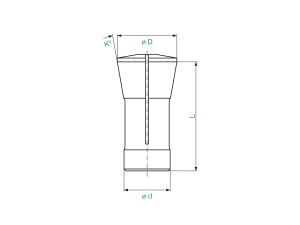

Pic. 2

deadlength collets

art. no.	pic.	d	D	L	K°	bore pattern			max. diameter
						LQ	Q	G
100 E	1	6	10	30	15			*	4,5
101 E	1	8	12	42	16			*	6
102 E	1	8	13,7	30	21			*	5,5
103 E	1	8	14	35	15			*	5
109 E	1	10	15,5	47,5	20			*	7
110 E	1	10	16	43	15			*	7
111 E	1	10	16	46	20		*		7
112 E	1	11	18,7	41	22			*	7,5
113 E	2	12	15,5	30,5	10			*	10
117 E	1	14	18	46	13			*	10
118 E	1	14	19,5	46	15			*	10	9	7
120 E	1	15	21	64	16		*		12	9	7
1212 E	1	16	21	64	16		*		13
125 E	1	17,5	22	51	15		*		14
136 E	1	20	26	54	15		*		16	14	11
138 E	1	20	28	67,3	16		*		16	14	11
139 E	1	22	28	67	18		*		16	13	10
140 E	1	22	30	55	15	*	*		16	14	10
143 E	1	25	31	54	15		*		16	14	11
145 E	1	25	35	77	16		*		20	17	14
146 E	1	26	32	67	13		*		20	17	14
148 E	1	28	38	70	15	*	*		24	20	16
156 E	1	30	39,3	87	15		*		25	22	14
157 E	1	30	42	80	16		*		25	22	18
1446 E	1	30	38	65	15		*		25	22	18
161 E	1	32	45	75	15	*	*		26	22	18
1497 E	1	34	44	78	16		*		28	24	20
162 E	1	35	43	70	15		*		25	22	17
163 E	1	35	48	80	15	*	*		30	27	22
1536 E	1	37	47	92	16		*		32	27	22
164 E	1	38,08	49	108	15		*		32	27	22
171 E	1	42	55	94	15		*		37	32	26
173 E	1	48	60	94	15	*	*		42	36	28
177 E	1	58	70	94	15		*		52
185 E	1	66	84	110	15	*	*		60	50	40
190 E	1	88	106	115	15	*			80
193 E	1	90	107	130	15	*			80	85	70
196 E	1	112	138	120	15		*		100	85	70
Highlighted art. no. according to DIN 6343

Some collets are marked with both LQ and Q; when ordering one of them, please indicate bore patterns for pattern Q only.

Pressure sleeves and clamping fingers on request.

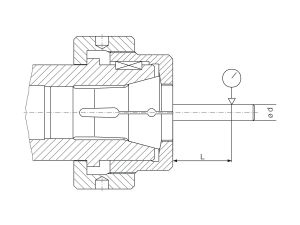

running concentricity (truth)

clamping diameter		testing point	running concentricity
d from	d to	L	standard	high precision
1	1,6	6	0,02	0,01
1,6	3	10	0,02	0,01
3	6	16	0,02	0,01
6	10	25	0,02	0,01
10	18	40	0,03	0,015
18	24	50	0,03	0,015
24	30	60	0,03	0,015
30	50	80	0,04	0,02
50	60	100	0,04	0,02

Similar to DIN 6343
The LQ pattern may have a radial runout which is 50 % higher. The precision design attracts an additional charge.

Use:

for workpiece clamping
for bar or chuck work
no axial movement while the chuck is clamping

Bore patterns:
(G): smooth
(Q): with round grooves from 6.0 mm
(LQ): with cross grooves from 6.0 mm, serrated in the case of round bores greater than 9.0 mm; higher clamping force

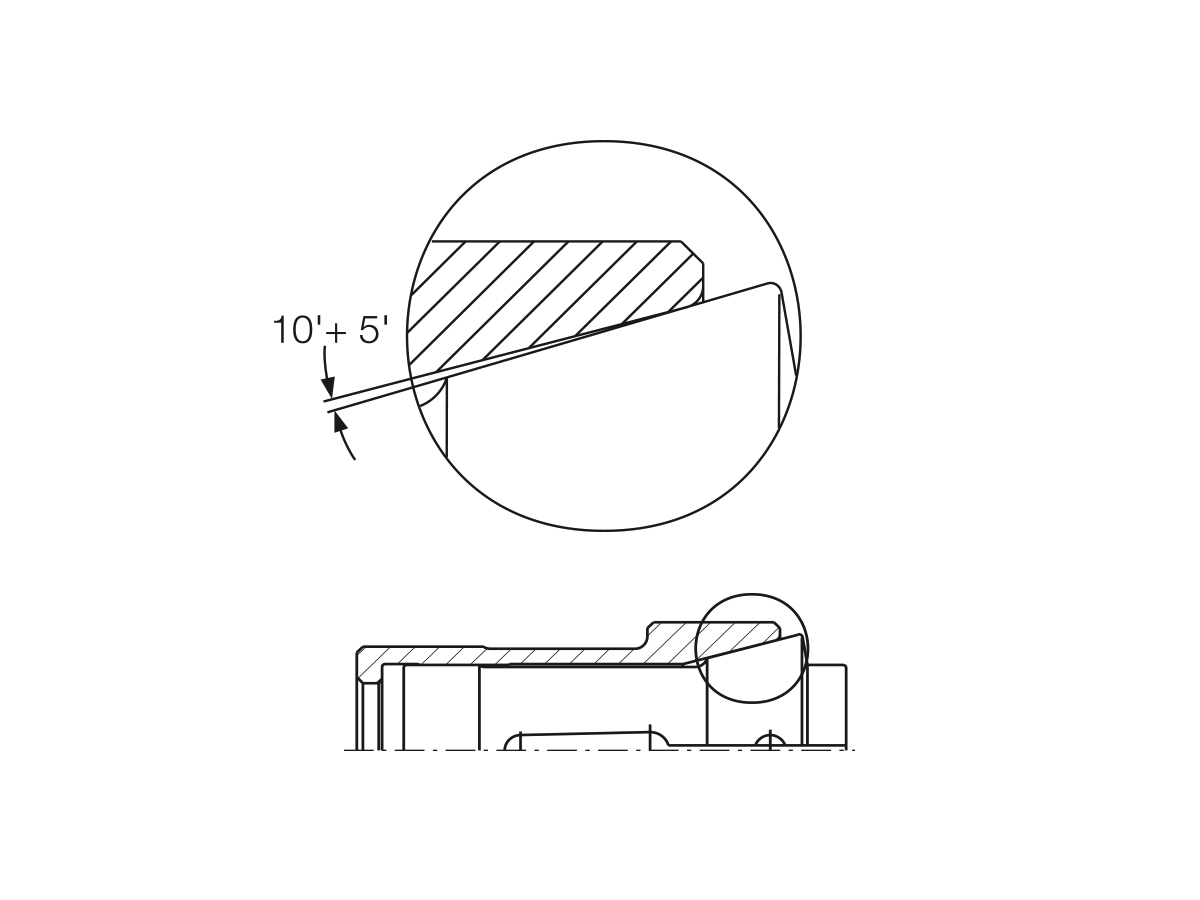

Taper angle of the clamping sleeve:
The taper of the clamping sleeve should be 15‘ (one-sided) flatter than the taper angles given in the tables. This frees the collets on release and provides low undersized clamping.

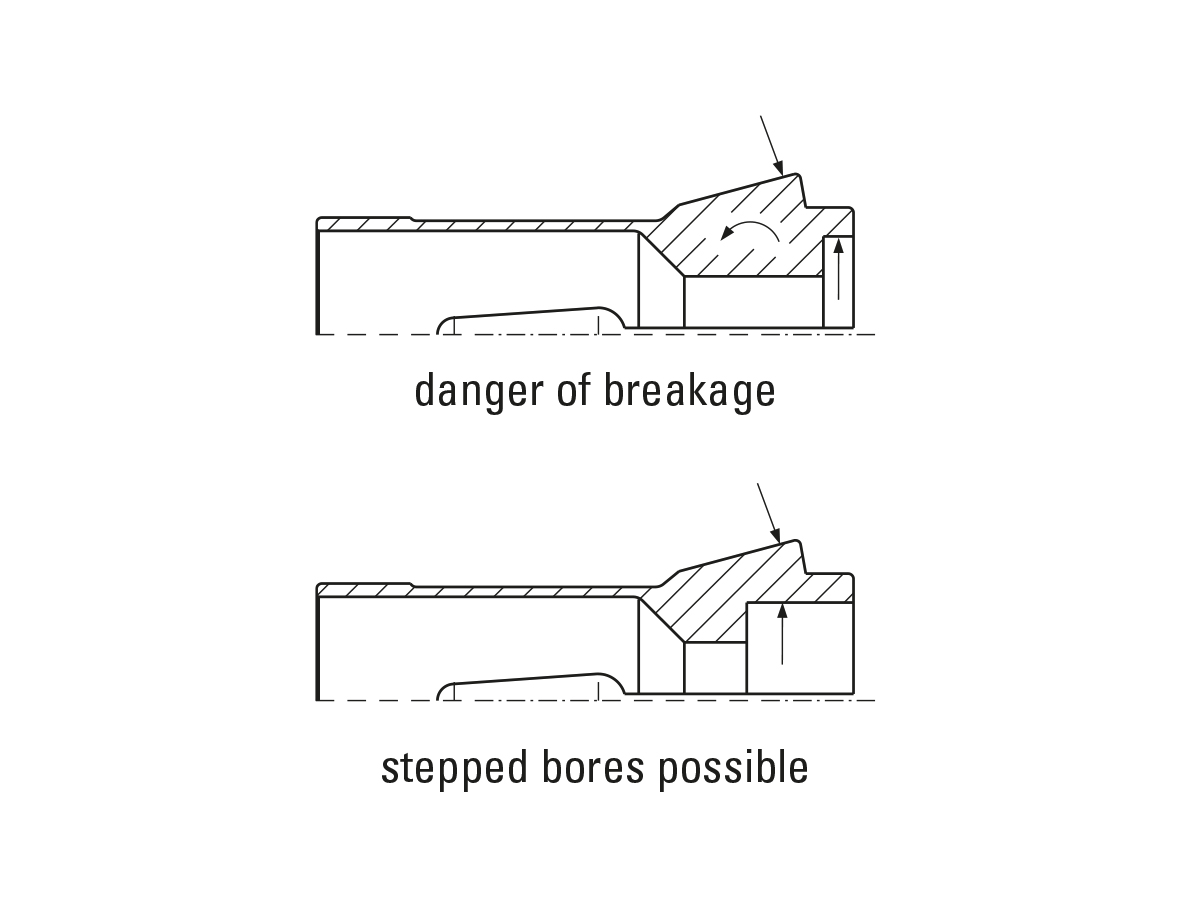

Stepped bores:
In the case of stepped bores or when using collet stops, the clamping point should be within the taper of the collet, otherwise the collet will tend to break due to bending stresses.

Hardness:
The collets are made from special spring steel. Where possible, by partial tempering, the hardness of the taper and clamping bore is approx. HRc 60. The shank and sprung area are hardened to spring.

Taper grinding:
The clamping taper is lightly ground at the slot edges to ease removal of the collets from the mounting thus making possible low undersized clamping.

Stops for collets:
Adjustable stops which are easily fitted into the rear bore of the collets. Bores are available for standard models.
