Emergency collets
deadlength collets, HRc 45
| art. no. | pic. | d | D | L | K° |
| 140 E - 0.0 | 1 | 22 | 30 | 55 | 15 |
| 148 E - 0.0 | 1 | 28 | 38 | 70 | 15 |
| 161 E - 0.0 | 1 | 32 | 45 | 75 | 15 |
| 163 E - 0.0 | 1 | 35 | 48 | 80 | 15 |
| 173 E - 0.0 | 1 | 48 | 60 | 94 | 15 |
| 185 E - 0.0 | 1 | 66 | 84 | 110 | 15 |

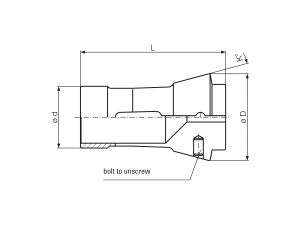

Deadlength collets (pic. 2), short version: see standard collets.

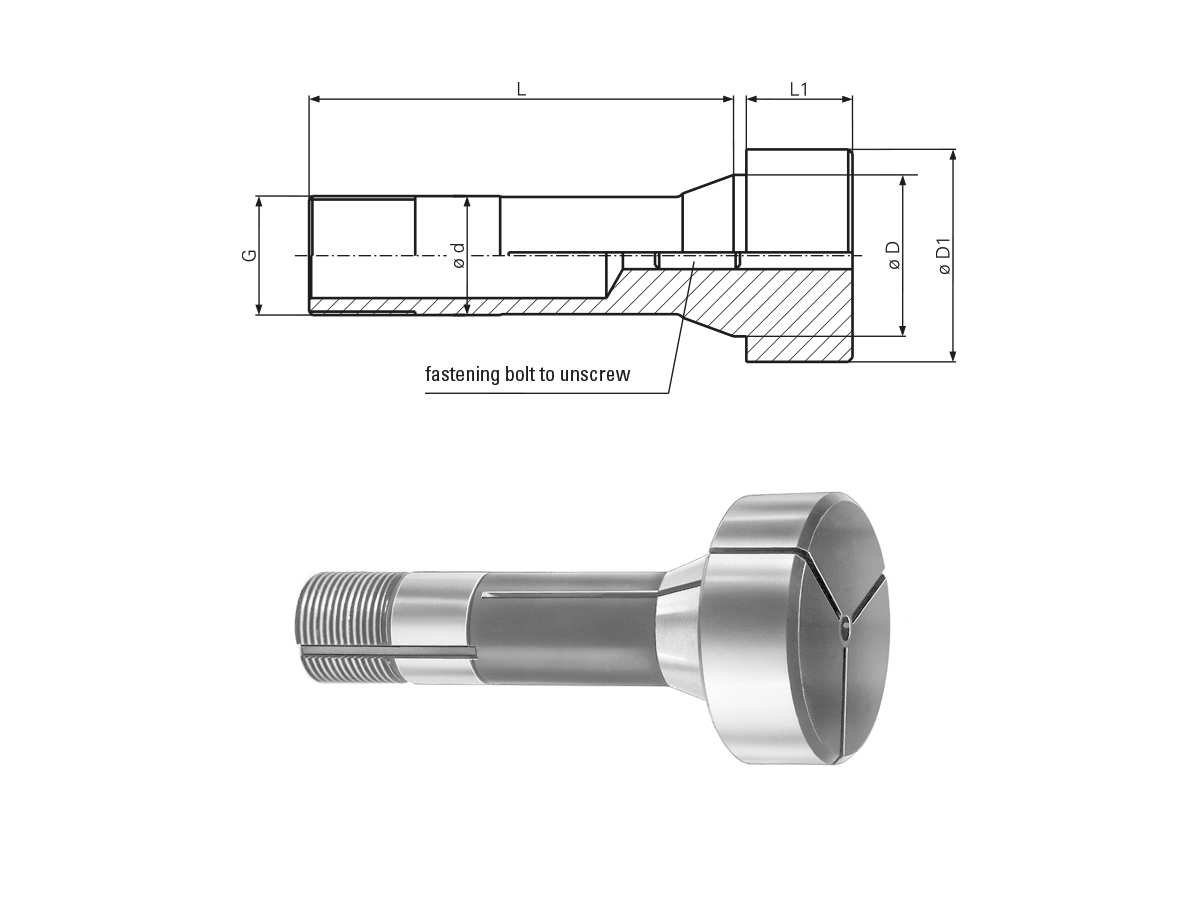

Deadlength collets (pic. 3), enlarged and extended versions: these deadlength collets are able to clamp large and short workpieces.
draw-back collets, HRc 45
| art. no. | pic. | D1 | L1 |
| Gr. 0.0 | 2 | ||
| Gr. 0.1 | 3 | 25 | |
| Gr. 1.1 | 3 | 40 | 25 |
| Gr. 1.2 | 3 | 40 | 50 |
| Gr. 2.1 | 3 | 50 | 25 |
| Gr. 2.2 | 3 | 50 | 50 |
| Gr. 3.1 | 3 | 75 | 25 |
| Gr. 3.2 | 3 | 75 | 50 |
| Gr. 4.1 | 3 | 100 | 25 |
| Gr. 4.2 | 3 | 100 | 50 |
Draw-back collets with a hardness of HRc 45 are available for collet types 349 E, 358 E, 369 E, 363 E, 364 E, 366 E, 367 E, 385 E and 386 E with various head sizes.
Use:
Emergency collets are used for holding smaller series workpieces when no standard collet is available. Unlike the standard collet, with its hardened taper and clamping bore, emergency collets only have a hardness of approx. HRc 45. The customer can therefore enlarge the bore of the collet.
To enlarge the bore, the emergency collet is clamped on a bolt in the rear of the clamping bore or on pins in the slots and turned out in this position.
Note: The centrifugal force resulting at high speeds can lead to a lessening of the clamping power and, in extreme case, breaking of the collets. Please follow accident-prevention instructions.
Special features:

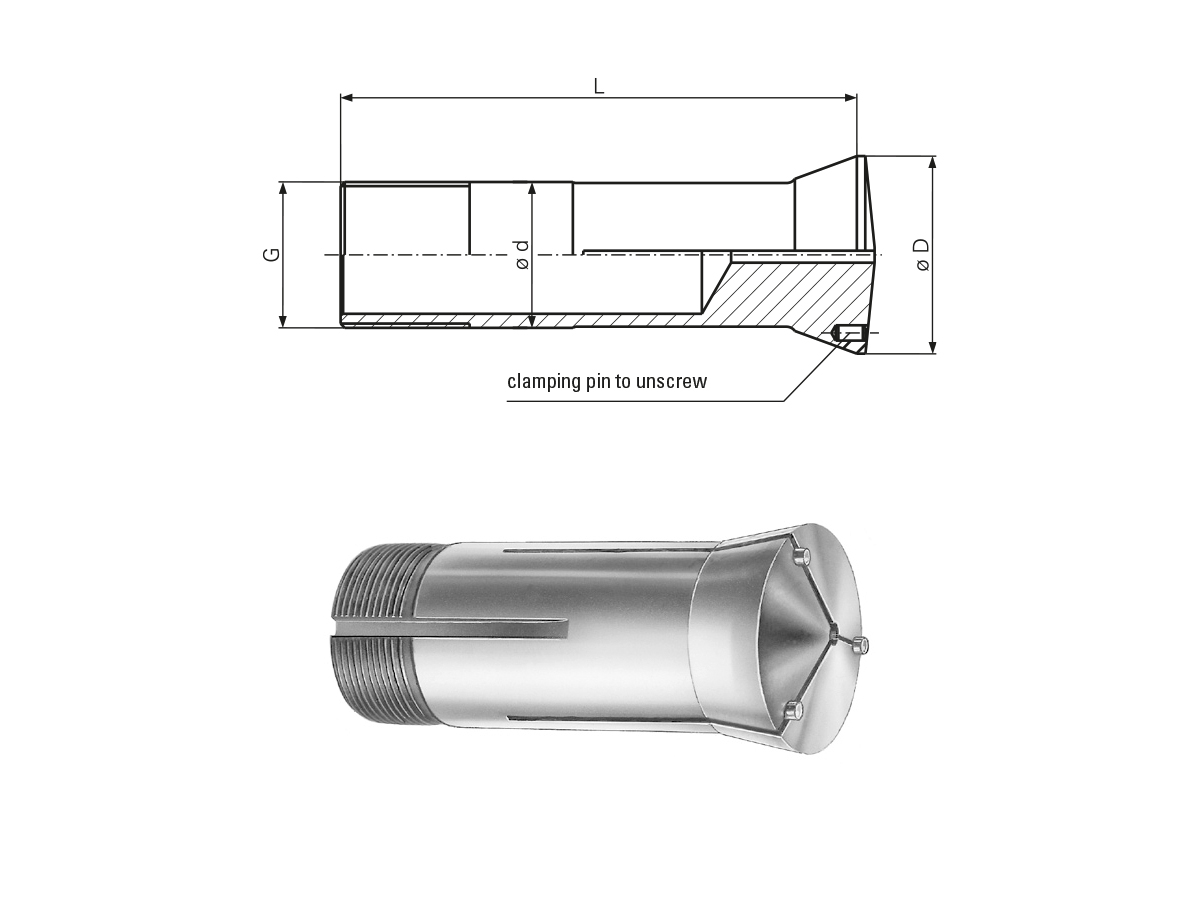

Deadlength collets (pic. 1) with a hardness of HRc 45 are available for collet types 140 E, 148 E, 161 E, 163 E, 173 E and 185 E, further types on request.
