Feed fingers for multi-spindle automatic lathes
for Gildemeister

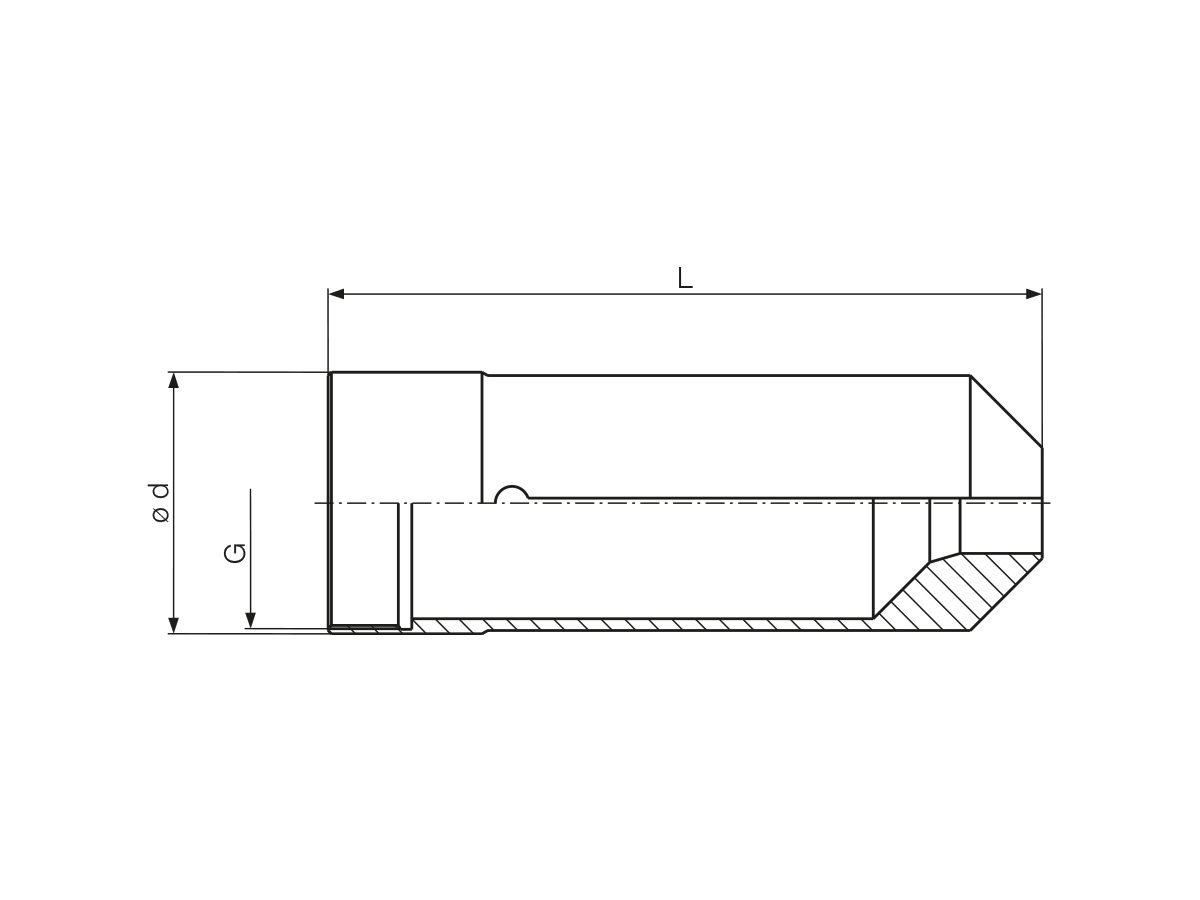

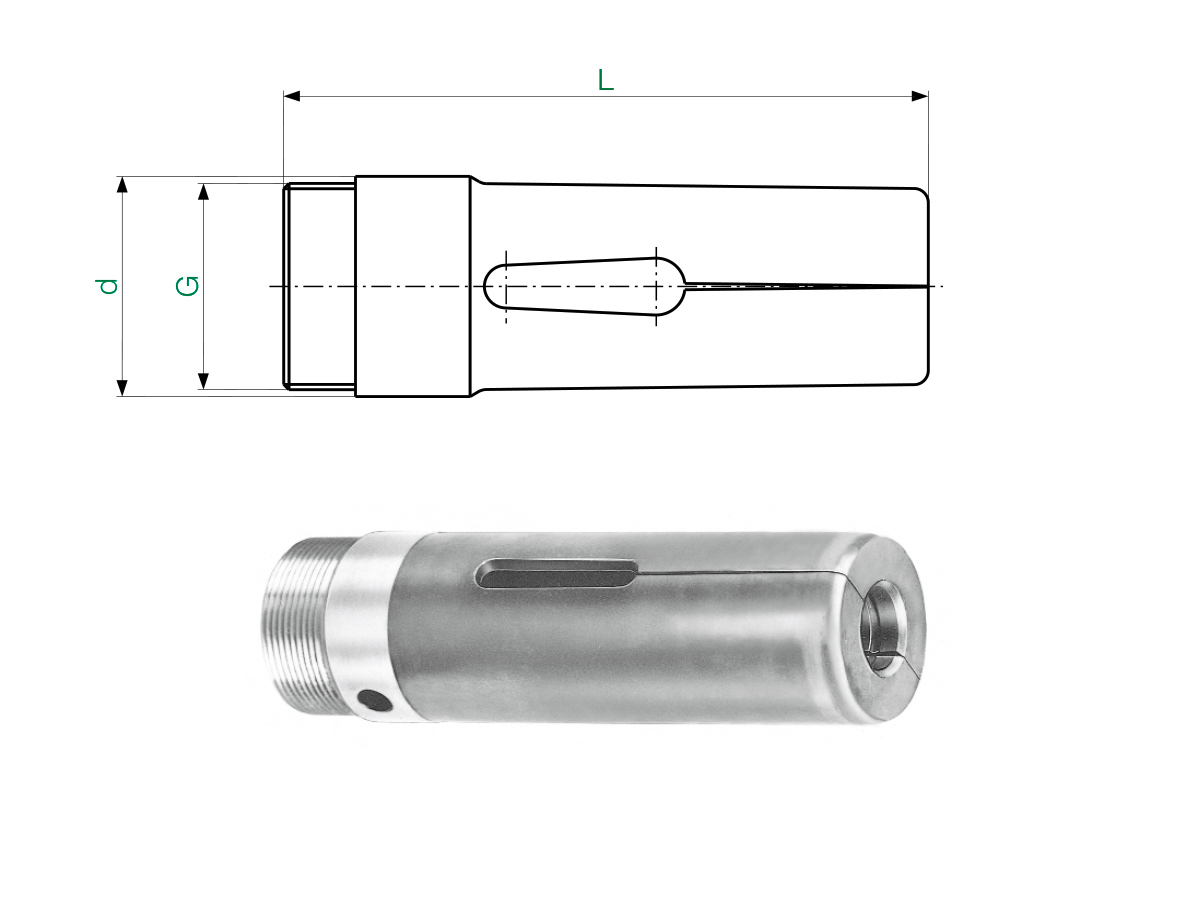

art. no. | pic. | d | L | thread G | max. diameter | type | ||
9259 E | 2 | 19,5 | 82 | M 17 x 1 | 13 | 11 | 9 | AS 12 |
9268 E | 1 | 22,0 | 86 | M 20 x 1 | 16 | 14 | 11 | GM 16 AC |
9258 E | 1 | 25,0 | 90 | M 24 x 1 | 20 | 17 | 14 | AS 16 - AS/GS 20 - GM 20 |
9288 E | 1 | 30,5 | 90 | M 28,5 x 0,75 | 25 | 22 | 18 | AS 20 erw. 25 |
9286 E | 1 | 32,0 | 140 | M 28 x 1,5 L | 22 | 19 | 15 | AS 22 |
9287 E | 1 | 33,0 | 140 | M 30 x 1 L | 25 | 22 | 18 | AS 25 |
9289 E | 1 | 33,6 | 140 | M 30 x 1 | 25 | 22 | 18 | GS 25 |
9316 E | 1 | 40,0 | 136 | M 38 x 1,5 L | 32 | 27 | 22 | AS/AV 32 |
9335 E | 1 | 41,2 | 136 | M 39 x 1 R o. L | 35 | 30 | 24 | GM 32 erw. 35 - GM35 |
9336 E | 1 | 41,5 | 136 | M 38 x 1,5 R o. L | 32 | 27 | 22 | GM 32 |
9333 E | 1 | 45,0 | 136 | M 42 x 1,5 L | 35 | 30 | 24 | GM 35 |
9374 E | 1 | 51,5 | 136 | M 48 x 1,5 | 42 | 36 | 28 | GM 42 |
9368 E | 1 | 57,0 | 160 | M 54 x 1,5 L | 48 | 41 | 33 | AS/AV/AA/AR 48 |
9401 E | 1 | 60,0 | 160 | M 57 x 1,5 L | 50 | 43 | 35 | GS 50 - GS 51 |
9447 E | 1 | 77,5 | 170 | M 74 x 1,5 L | 67 | 58 | 47 | AS 67 |
9475 E | 1 | 94,0 | 180 | M 88 x 1,5 L | 82 | 70 | 57 | AS/AV 82 |
9483 E | 1 | 114,0 | 235 | M 108 x 1,5 L | 100 | 87 | 71 | AS 100 |
for Index
art. no. | pic. | d | L | thread G | max. diameter | type | ||
9255 E | 1 | 25 | 88 | M 23 x 1 | 19 | 16 | 13 | MS 16 |
9273 E | 1 | 30,8 | 102 | M 28 x 1,5 R o. L | 22 | 19 | 15 | KS 20 - KS 22 |
9282 E | 1 | 35 (37) | 118 | M 33 x 1,5 | 25 | 22 | 18 | KS/MS 25 |
9319 E | 1 | 41,8 | 130 | M 38 x 1,5 | 32 | 28 | 23 | KS 32 |
9333 E | 1 | 45 | 136 | M 42 x 1,5 L | 35 | 30 | 24 | MS 35 |
9364 E | 1 | 54 | 170 | M 50 x 1,5 L | 42 | 36 | 30 | KS 42 |
9402 E | 1 | 60 | 156 | M 57 x 2 L | 50 | 43 | 35 | KS 50 |
9401 E | 1 | 60 | 160 | M 57 x 1,5 L | 50 | 43 | 35 | MS 50 |
for Pittler
art. no. | pic. | d | L | thread G | max. diameter | type | ||
9278 E | 1 | 35,0 | 147 | 1.1/4“ x 1/20“ L | 25 | 22 | 18 | PRC 25 |
9285 E | 1 | 39,5 | 168 | 1.7/16“ x 1/20“ L | 32 | 27 | 22 | PRB/PRC 32 |
9330 E | 1 | 44,3 | 168 | 1.5/8“ x 1/20“ L | 36 | 31 | 25 | PRC 36 |
9405 E | 1 | 63,5 | 186 | 2.5/16“ x 1/24“ L | 50 | 43 | 35 | PRB/PRC 50 |
9472 E | 1 | 92,0 | 214 | 3.3/8“ x 1/24“ L | 72 | 62 | 51 | PRC 72 |
9482 E | 1 | 116,0 | 273 | 4.3/8“ x 1/18“ L | 104 | 90 | 73 | PRC 100 |
for Schütte
art. no. | pic. | d | L | thread G | max. diameter | type | ||
9261 E | 1 | 19,6 | 82 | M 18 x 1 | 13 | 11 | 9 | SF 12 - SF 13 |
9254 E | 1 | 23 | 88 | M 21 x 1 R o. L | 16 | 14 | 11 | SB 16 |
9255 E | 1 | 25 | 88 | M 23 x 1 | 19 | 16 | 13 | SE 16 - SE 18 |
9262 E | 1 | 27 | 88 | M 25 x 1 | 20 | 17 | 14 | SF/VD 20 |
9282 E | 1 | 35 (37) | 118 | M 33 x 1,5 | 25 | 22 | 18 | AF/SE/SD/VD 25 - SF 26 |
9319 E | 1 | 41,8 | 130 | M 38 x 1,5 | 32 | 28 | 23 | AF/AV/SF/SD/VD 32 |
9333 E | 1 | 44 | 136 | M 42 x 1,5 L | 36 | 31 | 25 | S 36 PC |
9372 E | 1 | 51 | 174 | M 48 x 1,5 | 40 | 35 | 28 | SD/SF 40 - SF 42 |
9406 E | 1 | 62 (64) | 195 | M 58 x 1,5 | 50 | 43 | 35 | SD/SF 50 - SF 51 - S 51 PC |
9450 E | 1 | 77 | 205 | M 72 x 1,5 L | 63 | 54 | 44 | SD/SF/VD 63 |
9456 E | 2 | 78 | 225 | M 75 x 1,5 L | 69 | 59 | 48 | SF 67 |
9474 E | 1 | 92,8 | 233 | M 88 x 1,5 L | 80 | 69 | 56 | SD 80/SF 81 |
for Tornos
art. no. | pic. | d | L | thread G | max. diameter | type | ||
9251 E | 1 | 17,9 | 70 | M 16 x 0,75 | 14 | 12 | 10 | AS/BS 14 |
9251 E-1 | 1 | 18,3 | 70 | M 17 x 0,75 | 15 | 13 | 10 | AS/BS 14 |
9265 E | 1 | 22,8 | 98 | M 20 x 0,75 | 16 | 14 | 11 | AS/SAS 16 |
9266 E | 1 | 27,7 | 116 | M 25 x 1 | 21 | 18 | 14 | BS 20 B |
9263 E | 1 | 29,7 | 116 | M 27 x 1 | 23 | 20 | 16 | BS 20/22 |
for Tornos Bechler
art. no. | pic. | d | L | thread G | max. diameter | type | ||
9258 E | 1 | 25 | 90 | M 24 x 1 | 20 | 17 | 14 | Multi Deco 20-6, 20-8 |
9282 E | 1 | 35 (37) | 118 | M 33 x 1,5 | 25 | 22 | 18 | Multi Deco 26-6 |
for Wickmann
art. no. | pic. | d | L | thread G | max. diameter | type | ||
9260 E | 1 | 21,5 | 85,5 | 0.771“ x 1/24“ L | 16 | 13 | 11 | 5/8“ |
9276 E | 1 | 31,9 | 133,4 | 1.184“ x 1/24“ L | 26 | 22 | 17 | 1“ |
9318 E | 1 | 42,6 | 117,5 | 1.593“ x 1/22“ L | 32 | 27 | 22 | 1.3/8“ |
9362 E | 1 | 52,2 | 127,0 | 1.968“ x 1/22“ L | 45 | 38 | 31 | 1.3/4“ |
for ZPS
art. no. | pic. | d | L | thread G | max. diameter | type | ||
9290 E | 1 | 32,0 | 115 | M 30 x 1 L | 25 | 22 | 18 | SAY - 25 |
9282 E | 1 | 35 (37) | 118 | M 33 x 1,5 | 25 | 22 | 18 | SAY - 25 |
9319 E | 1 | 41,8 | 130 | M 38 x 1,5 | 32 | 28 | 23 | SAY - 32 |
9372 E | 1 | 51,0 | 174 | M 48 x 1,5 | 40 | 35 | 28 | SAY - 42 |
Highlighted art. no. according to VDI 3322 |
Use:
For feeding forward workpiece bars on multi-spindle automatic lathes.
Bore patterns:
- round grooves
- smooth bores on request
Hardness:
Feed fingers are made from special spring steel. The front component with the clamping bore has a hardness of approx. HRc 60 – where this is not prevented by the partial tempering. The thread and spring areas are hardened to spring temper.
Feed force:

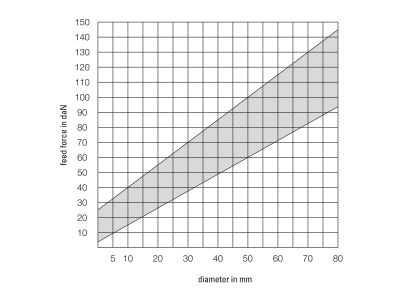

Feed fingers are supplied sprung together so that, when the dimensions are nominal, they pre-tension the workpiece rods. The feed force table below gives the reference values.
A hardened ground test mandrel with a tolerance of h7 must be used for checking.
Feed fingers with increased feed force can be made for an extra charge.
