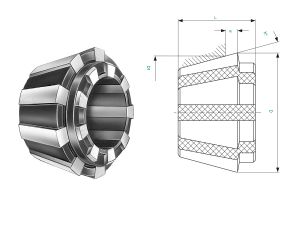

Multi-range collets
smooth bore
| art. no. | exchangeable with steel coll. | rubber collets | D min | D max | a min | a max | D1 | L | K° | clamping range | clamping tolerance |
| 755 E | 140 E | series 12 | 29,5 | 31,4 | 1 | 4,5 | 29 | 22 | 14°45´ | 3 - 16 | +0,3 / -1,3 |
| 760 E | 148 E | series 18 | 37,5 | 40,4 | 1 | 6,5 | 37 | 27 | 14°45´ | 4 - 20 | +0,3 / -2,3 |
| 765 E | 161 E | series 20 | 44,5 | 47,4 | 1 | 6,5 | 44 | 31 | 14°45´ | 4 -26 | +0,3 / -2,3 |
| 770 E | 163 E | series 24 | 47,5 | 50,4 | 1 | 6,5 | 47 | 31 | 14°45´ | 6 - 30 | +0,3 / -2,3 |
| 775 E | 173 E | series 36 | 59,5 | 62,4 | 1 | 6,5 | 59 | 39 | 14°45´ | 7 - 43 | +0,3 / -2,3 |
| 780 E | 185 E | series 52 | 83,5 | 86,4 | 1 | 6,5 | 83 | 50 | 14°45´ | 19 - 61 | +0,3 / -2,3 |
| 785 E | series 65 | 94,4 | 97,3 | 1 | 6,5 | 94,9 | 58 | 14°45´ | 59 - 65 | +0,3 / -2,0 | |
| 795 E | series 100 | 136,4 | 139,3 | 1 | 6,5 | 136,9 | 64 | 14°45´ | 59 - 101 | +0,3 / -2,0 |
serrated bore
| art. no. | exchangeable with steel coll. | rubber collets | D min | D max | a min | a max | D1 | L | K° | clamping range | clamping tolerance |
| 755 E-F | 173 E | series 36 | 59,5 | 62,4 | 1 | 6,5 | 59 | 39 | 14°45´ | 11 - 43 | +0,3 / -2,0 |
| 780 E-F | 185 E | series 52 | 83,5 | 86,4 | 1 | 6,5 | 83 | 50 | 14°45´ | 19 - 61 | +0,3 / -2,0 |

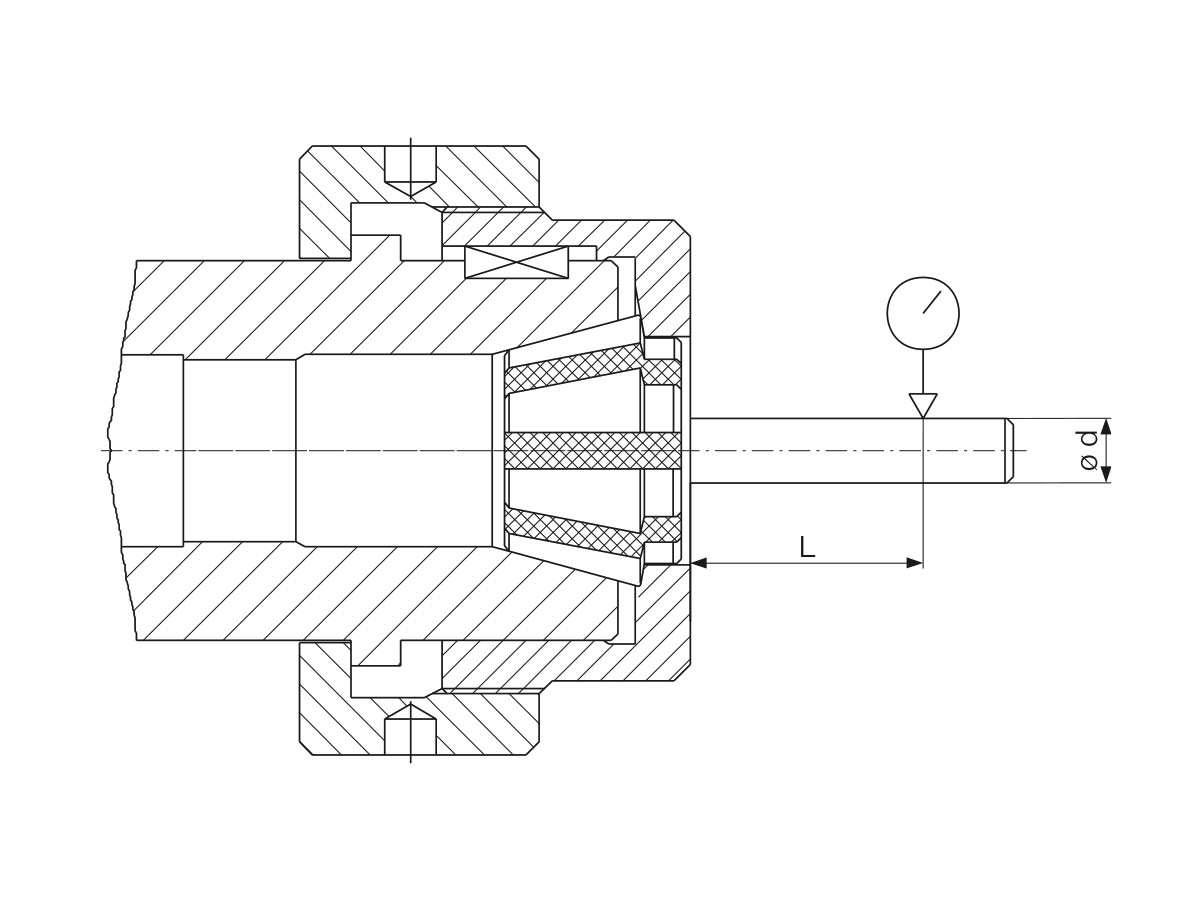

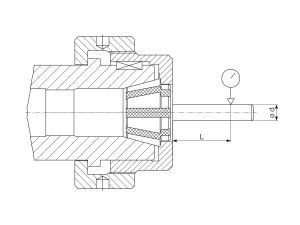

running concentricity
| Clamping diameter | Testing point | running concentricity | ||
| d from | d to | L | standard | high precision |
| 1 | 1,6 | 6 | 0,02 | 0,01 |
| 1,6 | 3 | 10 | 0,02 | 0,01 |
| 3 | 6 | 16 | 0,02 | 0,01 |
| 6 | 10 | 25 | 0,02 | 0,01 |
| 10 | 18 | 40 | 0,03 | 0,015 |
| 18 | 24 | 50 | 0,03 | 0,015 |
| 24 | 30 | 60 | 0,03 | 0,015 |
| 30 | 50 | 80 | 0,04 | 0,02 |
| 50 | 60 | 100 | 0,04 | 0,02 |
The precision design attracts an additional charge
Use:
- for workpiece clamping
- for bar or chuck work
- clamping range 2 mm
- no axial movement while chuck is clamping
- can be exchanged with DIN 6343 steel collets
- completely sealed against coolant and swarf
Hardness:
The segments of multi-range collets are made from a special tool steel. The hardness is approx. HRc 60.
Taper angle of the clamping sleeve:
The taper of the clamping sleeve must exactly match the taper angles of the collets given in the tables, otherwise the clamping segments will not clamp the workpiece along its entire length.
Stops for collets:
If stops are used, the rear of the clamping segments must be supported if the clamping length is short.
