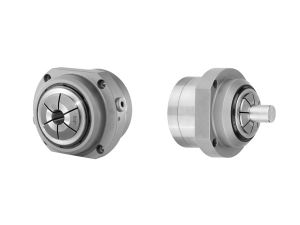

Type HESK, type HESK-R collet clamping attachments

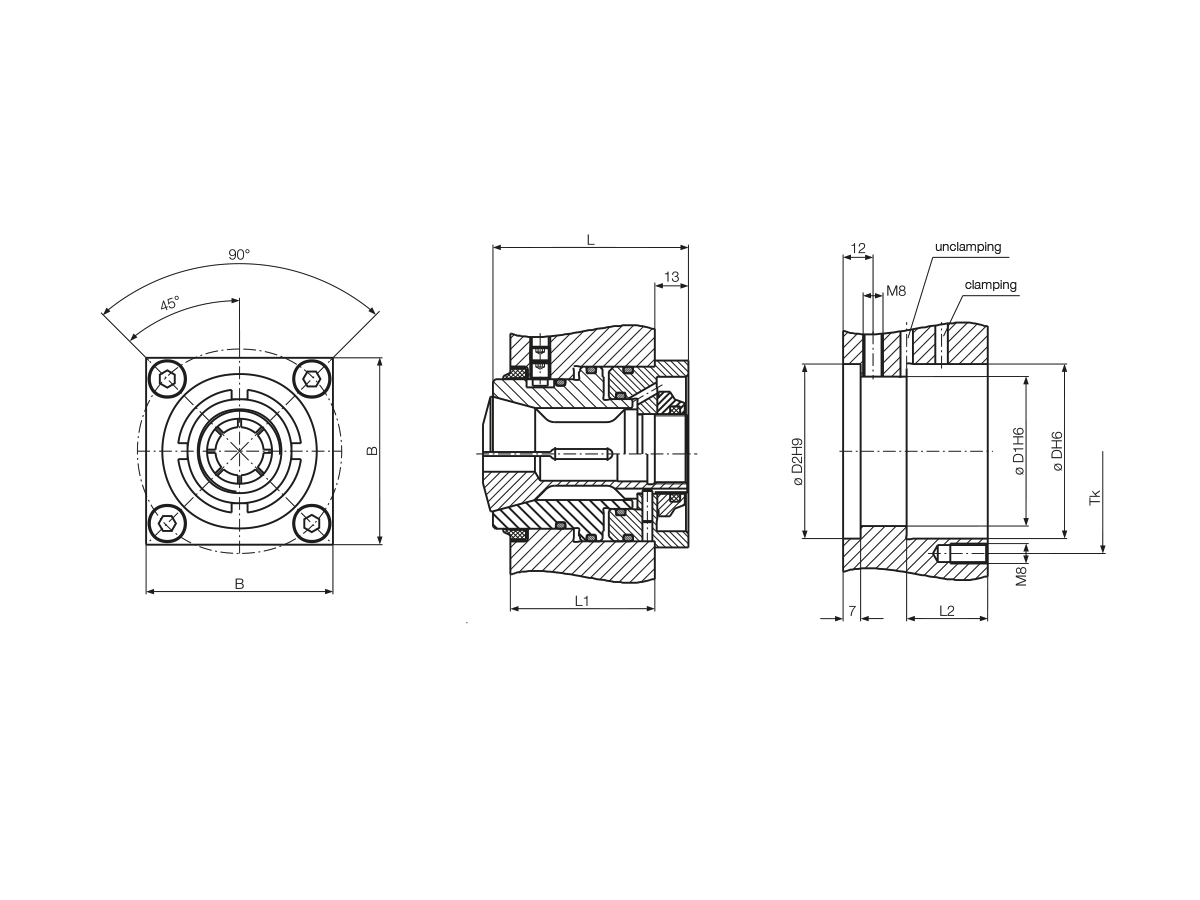

Type HESK
| art. no. | D | D1 | D2 | L | L1 | L2 | B | Tk | collet type |
| HESK - 20 | 70 | 60 | 70 | 78,5 | 58 | 38 | 75 | 82 | 3723 E |
| HESK - 30 | 80 | 70 | 80 | 86,5 | 58 | 38 | 85 | 92 | 3829 E |
| HESK - 40 | 90 | 80 | 90 | 86,5 | 88 | 46 | 115 | 122 | 3911 E |
| HESK - 60 | 110 | 100 | 110 | 107,5 | 88 | 46 | 115 | 122 | 3964 E |

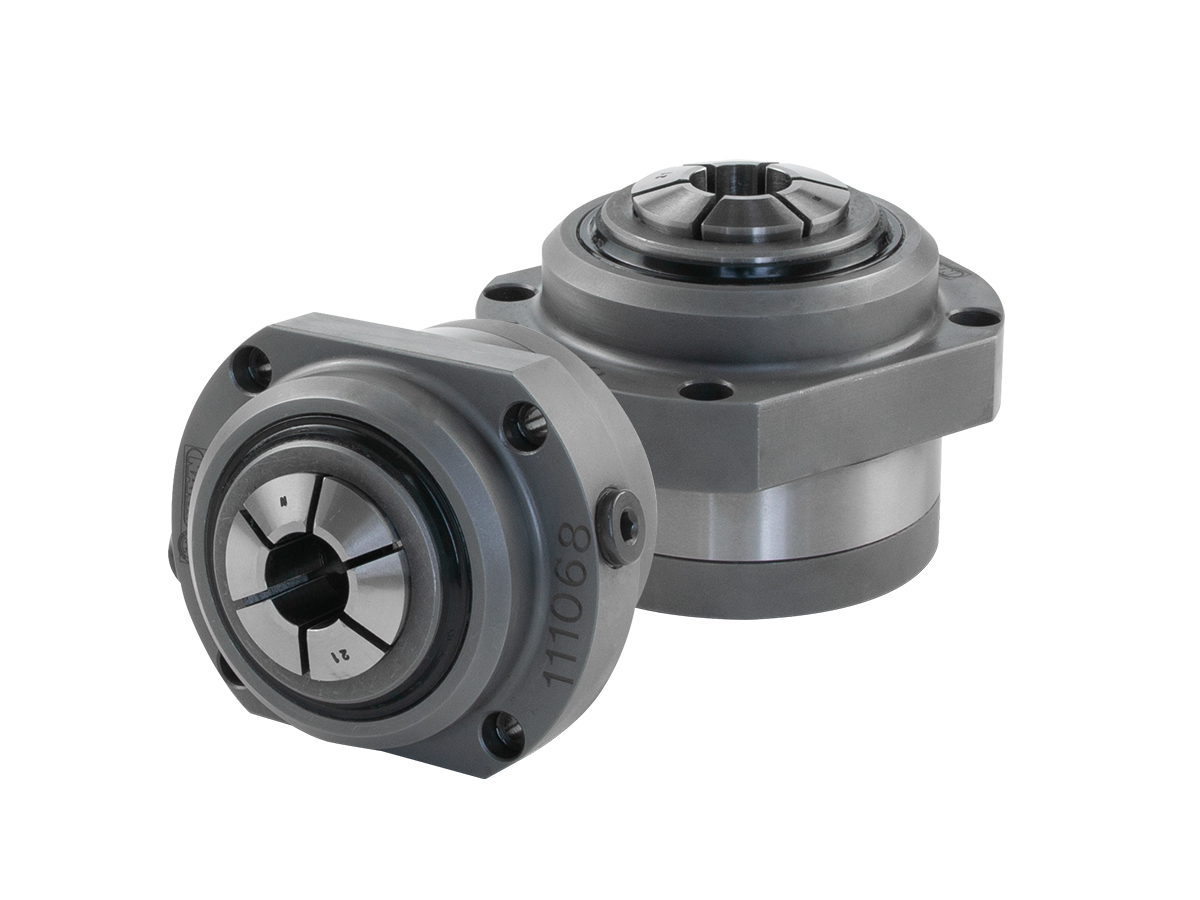

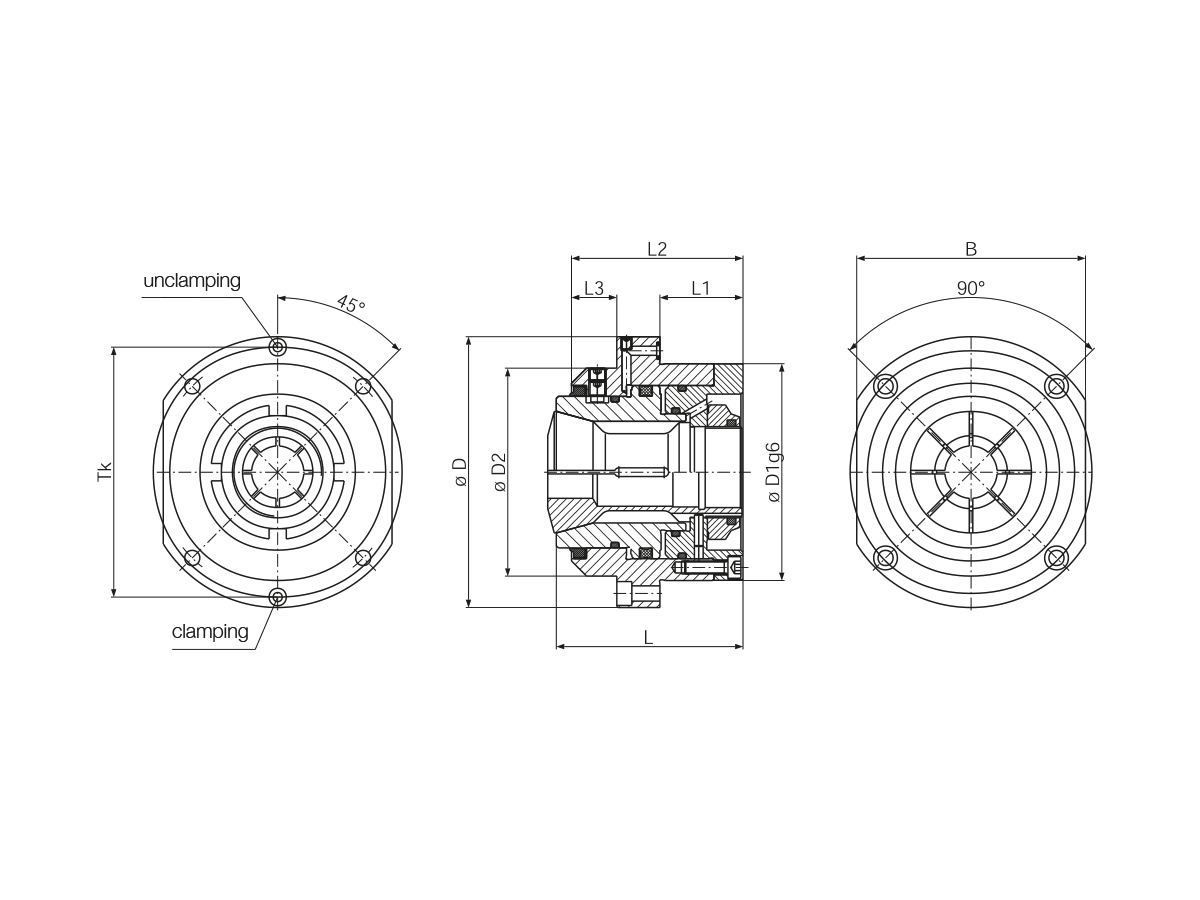

Type HESK-R
| art. no. | D | D1 | D2 | L | L1 | L2 | L3 | B | Tk | collet type |
| HESK - R-20 | 115 | 90 | 86 | 78,5 | 38,5 | 71,5 | 21,0 | 96 | 102 | 3723 E |
| HESK - R-30 | 125 | 100 | 96 | 86,5 | 38,5 | 79,5 | 21,0 | 106 | 112 | 3829 E |
| HESK - R-40 | 135 | 110 | 106 | 86,5 | 38,5 | 79,5 | 21,0 | 116 | 122 | 3911 E |
| HESK - R-60 | 155 | 130 | 126 | 107,5 | 46,5 | 100,0 | 33,5 | 136 | 142 | 3964 E |
| HESK - R-100 | 195 | 170 | 168 | 107,5 | 46,5 | 104,2 | 33,7 | 176 | 182 | 3996 E |
- small dimensions
- high clamping power
- absolutely fixed collets
- for 4/2-path valve

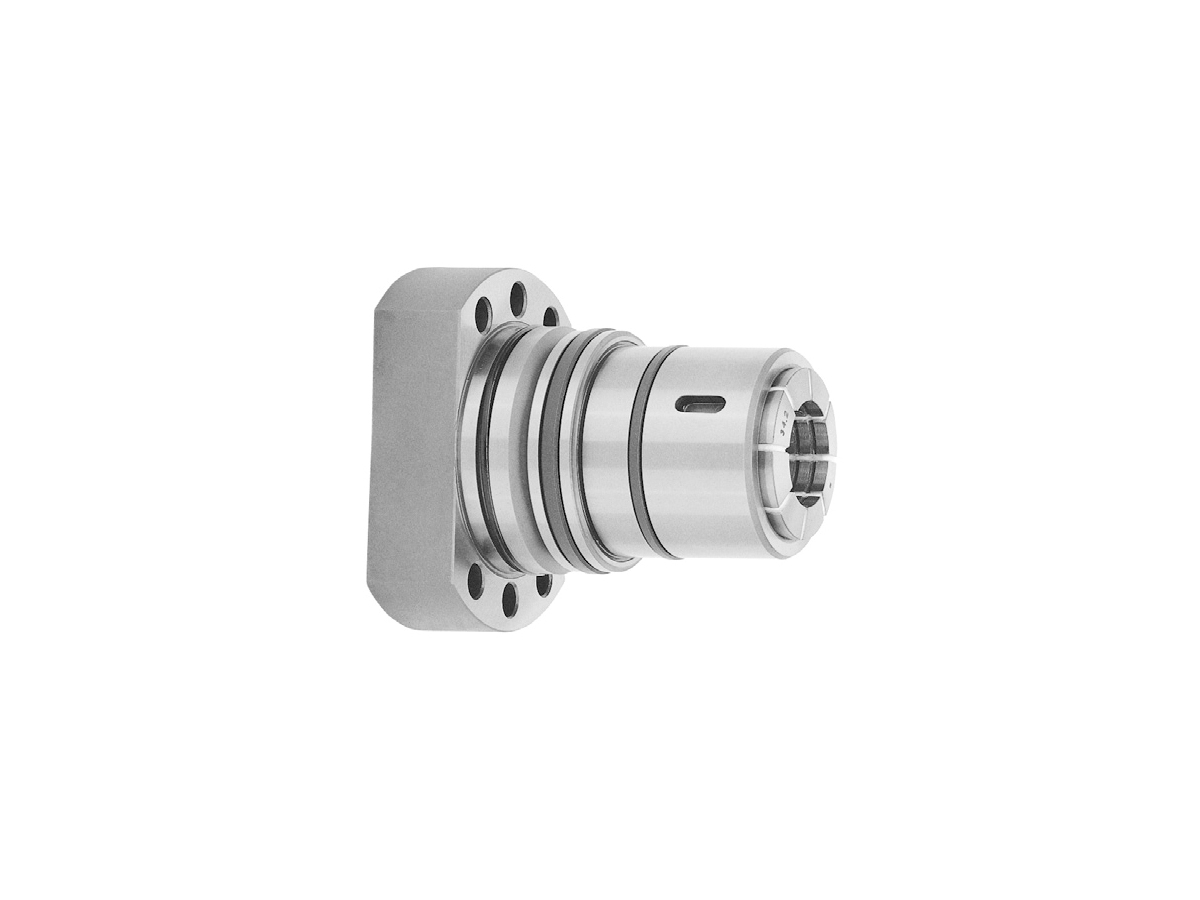

Type HESK clamping units can be mounted in a housing which is specific to the customer. Thus, the individual clamping units can be arranged according to requirements. The collets are equipped with a plane shoulder on the thread where they are tightened by means of a nut. That way they are absolutely fixed during clamping, no axial movements are possible.
